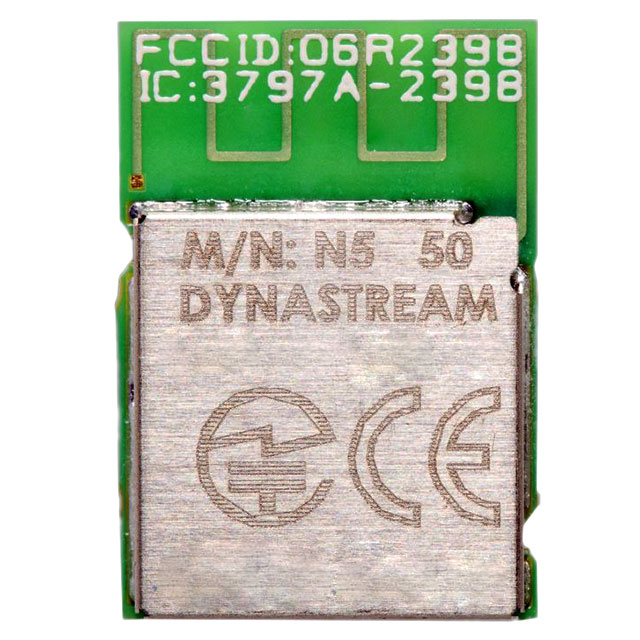

N550M8CC-REEL

Obsolete

Garmin Canada Inc.

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Obsolete

Garmin Canada Inc.

RF TXRX MOD BT TH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

RF TXRX MOD BT TH SMD

Part	Power - Output	Antenna Type	Serial Interfaces	Protocol	Memory Size [custom]	Memory Size [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Sensitivity	Package / Case	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Data Rate	Utilized IC / Part	Current - Receiving	Current - Transmitting
Garmin Canada Inc. N550M8CC-REEL	4 dBm	Integrated, Trace	I2C, SPI, UART	Bluetooth v4.1	16 kB	256 kB	-25 °C	75 ░C	-93 dBm	35-SMD Module	Surface Mount	2.4 GHz	3.6 V	1.8 V	Bluetooth	60 kbps	nRF51422
Garmin Canada Inc. N550M8CC-TRAY	4 dBm	Integrated, Trace	I2C, SPI, UART	Bluetooth v4.1	16 kB	256 kB	-40 °C	85 °C	-93 dBm	35-SMD Module	Surface Mount	2.4 GHz	3.6 V	1.8 V	Bluetooth	60 kbps	nRF51422	16 mA	16 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
