3-1105051-2
ActiveTE Connectivity AMP Connectors

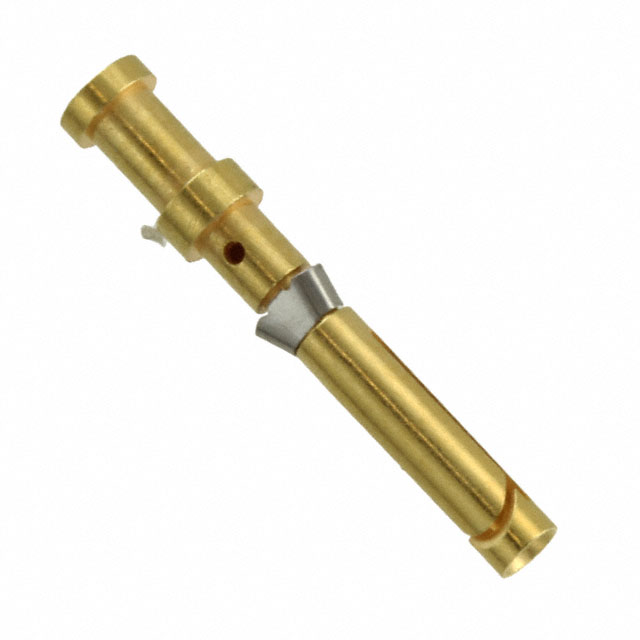

CONTACT H.D CRIMP SKT 17-18.5AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1105051-2
ActiveTE Connectivity AMP Connectors
CONTACT H.D CRIMP SKT 17-18.5AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1105051-2 | 1105051 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Machined | Machined |
| Wire Gauge | - | 13.5 - 20 AWG |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.19 | |
| 10 | $ 4.30 | |||
| 25 | $ 3.99 | |||
| 50 | $ 3.77 | |||
| 100 | $ 3.56 | |||
| 250 | $ 3.31 | |||
| 500 | $ 3.13 | |||
| 1000 | $ 2.96 | |||
| 2500 | $ 2.75 | |||
1105051 Series
CONTACT H.D. CRIMP SOCKET 20AWG
| Part | Wire Gauge | Contact Termination | Contact Finish | Pin or Socket | Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1105051-2 | 20 AWG | Crimp | Gold | Socket | Machined | ||
TE Connectivity AMP Connectors 5-1105051-2 | 13.5 AWG | Crimp | Gold | Socket | Machined | ||
TE Connectivity AMP Connectors 3-1105051-2 | Crimp | Gold | Socket | Machined | 17 AWG | 18 AWG |
Description
General part information
1105051 Series
Contact Crimp Socket 17-18.5 AWG Gold
Documents
Technical documentation and resources
