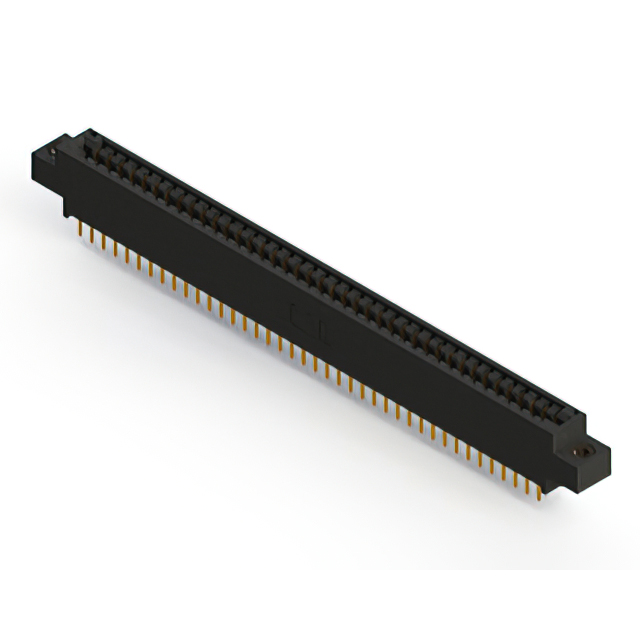

896-080-521-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-080-521-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 73.00
Newark	Each	1	$ 102.55
		100	$ 68.05
		250	$ 61.23
		500	$ 53.73
		1000	$ 45.63

Description

General part information

896-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-080-521-807	896-080 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening	Flush Mount, Top Opening, Unthreaded, Floating Bobbin, Top Mount Opening, Side Mount Opening, M3, Threaded Insert, 4-40, Side Opening
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	0.116 - 0.156 in
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole	Through Hole
Number of Positions	80	80
Number of Positions/Bay/Row [custom]	40	40
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder Eyelet(s), Solder, Wire Wrap
Termination Rows	2	2

896-080 Series

CONN EDGE DUAL FMALE 80POS 0.125

Part	Number of Rows	Number of Positions	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Contact Material	Material - Insulation	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Read Out	Color	Termination	Termination Rows	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 896-080-500-201	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder Eyelet(s)	2	Gold
EDAC Inc. 896-080-522-204	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold	3.96 mm	Flush Mount, Top Opening, Unthreaded	0.156 in
EDAC Inc. 896-080-522-203	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold	2.95 mm	Floating Bobbin, Flush Mount	0.116 in
EDAC Inc. 896-080-500-803	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder Eyelet(s)	2	Gold	2.95 mm	Floating Bobbin, Top Mount Opening	0.116 in
EDAC Inc. 896-080-521-802	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold				3.25 mm	0.128 in
EDAC Inc. 896-080-526-812	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold		Side Mount Opening, Unthreaded		3.25 mm	0.128 in
EDAC Inc. 896-080-520-802	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold				3.25 mm	0.128 in
EDAC Inc. 896-080-522-807	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold		M3, Threaded Insert, Top Mount Opening
EDAC Inc. 896-080-521-201	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder	2	Gold
EDAC Inc. 896-080-500-208	2	80	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Cantilever	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	10 Áin	0.25 Ám	0.125 in	3.18 mm	Dual	Black	Solder Eyelet(s)	2	Gold		4-40, Flush Mount, Threaded Insert, Top Opening
