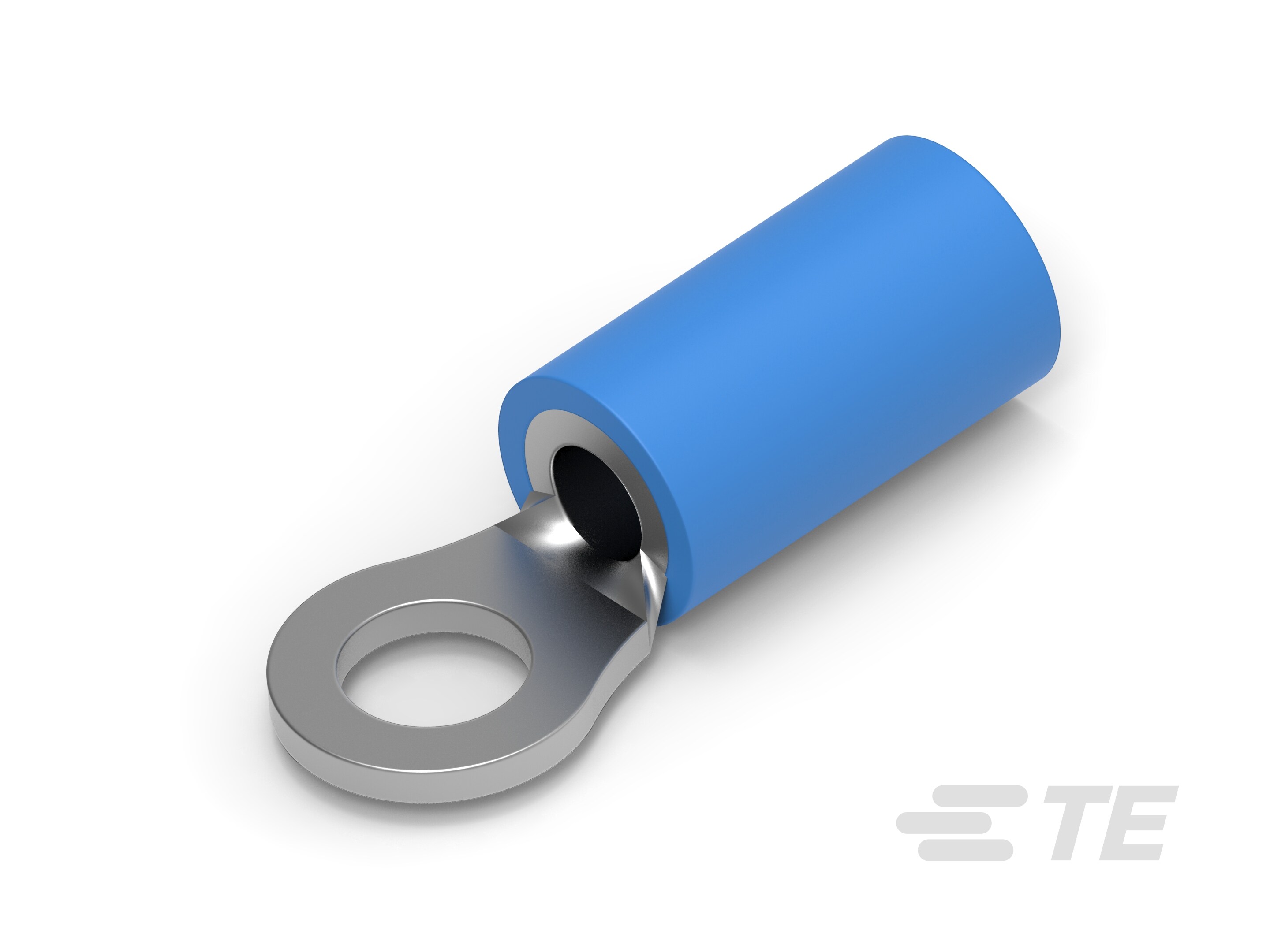

TERMINAL,PG R 16-14 6-34158

34158

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt
TERMINAL,PG R 16-14 6-34158

34158

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt

Description

General part information

34158

Closed Ring Tongue Terminal, 16 – 14 AWG, #6 / M3.5 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification34158
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.715 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size3.5 mm, 6 Stud
Stud/Tab SizeM3.5 Stud
Stud/Tab TypeStud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.25 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
