Description

General part information

RL78/G1x Series

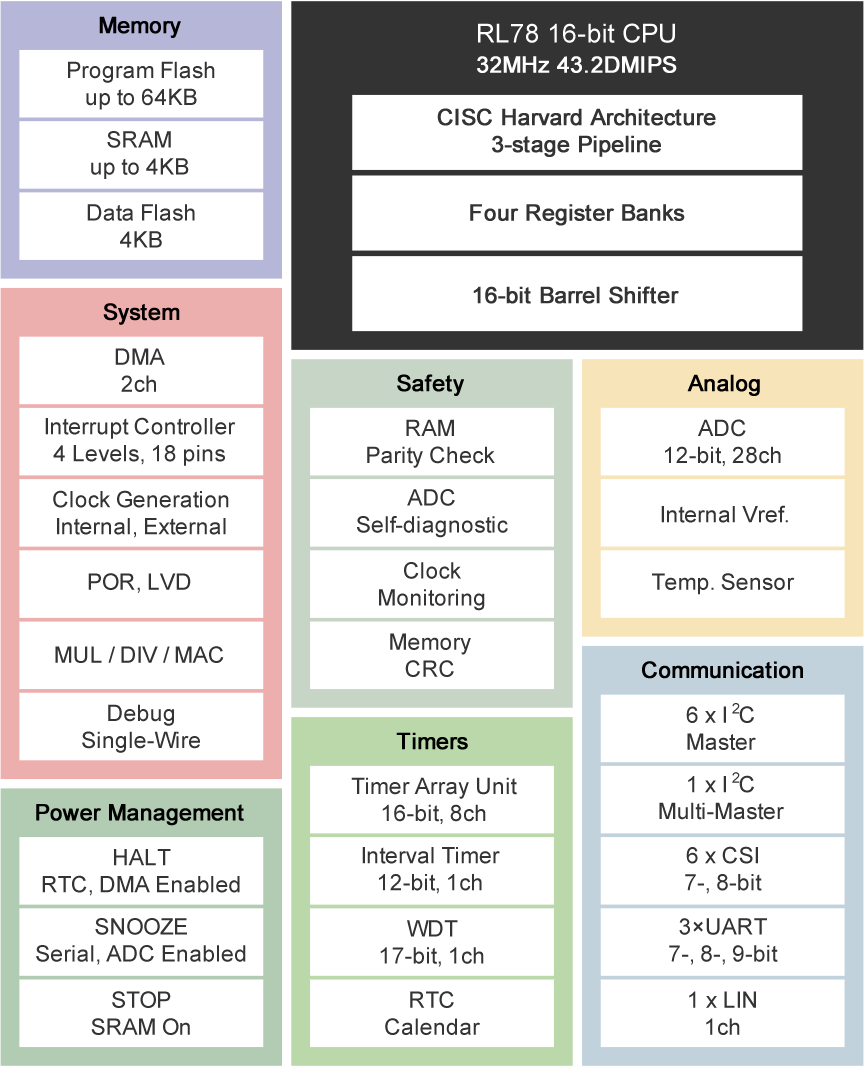

RL78/G1A microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of43.2 DMIPS (32 MHz). A built-in high-resolution 12-bit A/D converter, on-chip oscillator, data flash, and safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With an lineup of 25 to 64-pin LGA/BGA and other small packages, these microcontrollers are perfect for consumer and industrial sensor applications.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F10EGEGFB#10

A/D Channels	24 count
A/D Resolution (Max)	12 bit
A/D Resolution (Min)	8 bit
Connectivity	CSI, USART, LINbus, UART, I2C
Converter Type	A/D
Core Processor	RL78
Core Size (Bit Width)	16 Bit
EEPROM Size (Depth)	4 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	32
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	48-LQFP
Package Length	7 mm
Package Name	48-LFQFP
Package Width	7 mm
Peripherals	WDT, DMA, LVD, PWM, POR
Program Memory Depth	64 K
Program Memory Size	64 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	4 K
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.6 V

RL78/G1x Series

...

Part	Package Name	Oscillator Type	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	RAM Size Depth	RAM Size Width	Program Memory Depth	Program Memory Width	Program Memory Size	Package Length	Package Width	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	Speed	Core Processor	Mounting Type
Renesas Electronics Corporation R5F11W67ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68ASM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#30	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#10	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W68DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	1 K	8 bit	8 K	8 bit	8 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
Renesas Electronics Corporation R5F11W67DSM#50	20-TSSOP	Internal	FLASH	8 bit 10 bit	8 count	CSI UART USART	85 °C	-40 °C	16 Bit	512	8 bit	4 K	8 bit	4 KB	0.173 in	4.4 mm	POR WDT	5.5 V	2 V	16	20 MHz	RL78	Surface Mount
