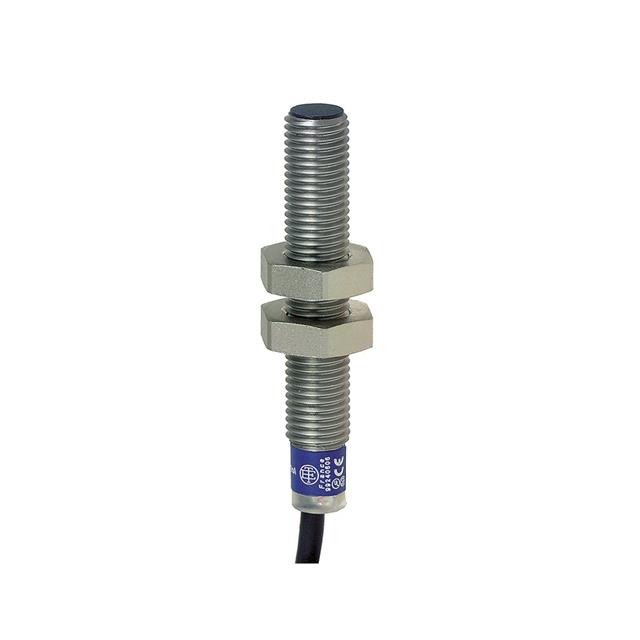

XS1M08MA230L1

XS1M08MA230L1

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1MM, SPST-NO, 24 TO 210V

Find alt
XS1M08MA230L1

XS1M08MA230L1

Active
SCHNEIDER ELECTRIC

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1MM, SPST-NO, 24 TO 210V

Find alt

Description

General part information

XS1M08MA230L1

Inductive Proximity Sensor 0.039" (1mm) IP67 Cylinder, Threaded - M8

Technical Specifications

Parameters and characteristics for this part

SpecificationXS1M08MA230L1
IndicatorNo Indicator
Ingress ProtectionIP67
Material - BodyStainless Steel
Operating Temperature (Max)80 °C
Operating Temperature (Min)-25 °C
Output TypeNO, 2-Wire
Package / CaseCylinder, Threaded - M8
Sensing Distance0.039 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleCable Leads
Voltage - Supply24VAC/DC ~ 240VAC, 210VDC
Voltage - Supply (Maximum)240 VAC
Voltage - Supply (Minimum)24 VAC
Voltage - Supply (Option 1)210 VDC
Voltage - Supply (Range 1 Maximum)240 VAC
Voltage - Supply (Range 1 Minimum)24 VAC
Voltage - Supply (Range 2 Maximum)210 VDC
Voltage - Supply (Range 2 Minimum)210 VDC
Voltage - Supply Maximum240 VAC
Voltage - Supply Minimum24 VAC
