09225SA-24K-AA-D0
ActiveNMB TECHNOLOGIES

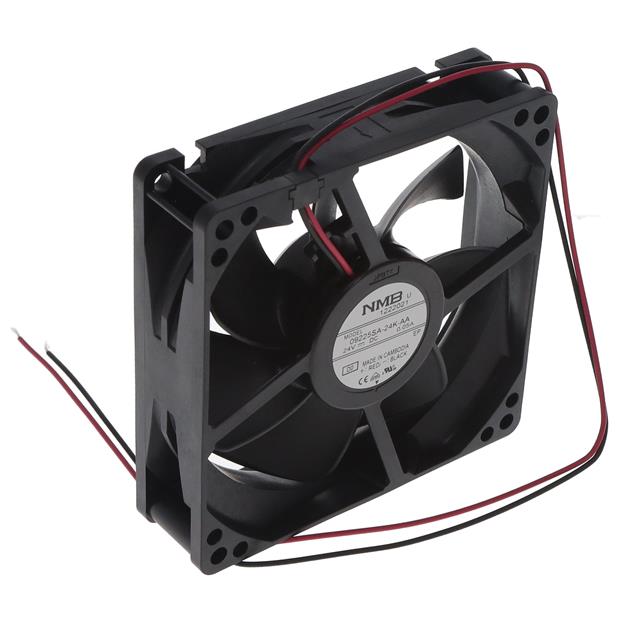

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 33.5 CFM
09225SA-24K-AA-D0
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 24 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 33.5 CFM
Description
General part information
09225SA-24K-AA-D0
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 33.5 CFM (0.938mł/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 09225SA-24K-AA-D0 |
|---|---|
| Air Flow | 33.5 CFM |
| Bearing Type | Ball |
| Current Rating | 40 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 960 mW |
| RPM | 2050 RPM |
| Size / Dimension Height | 92 mm |
| Size / Dimension Length | 92 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.086 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 27.6 VDC |
| Voltage Range (Min) | 12 V |
| Width | 25 mm |
