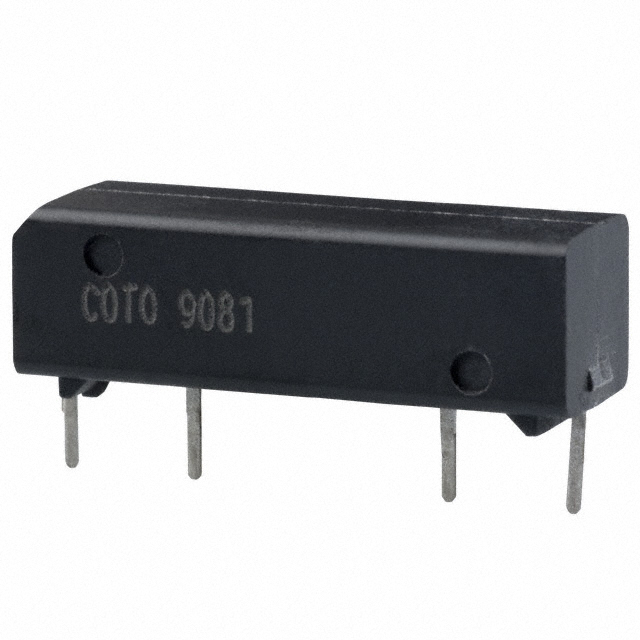

9081-24-00
ObsoleteCOTO TECHNOLOGY
RELAY REED SPST 500MA 24V
9081-24-00
ObsoleteCOTO TECHNOLOGY
RELAY REED SPST 500MA 24V
Description
General part information
9081-24-00
RELAY REED SPST 500MA 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9081-24-00 |
|---|---|
| Coil Current | 12 mA |
| Coil Resistance | 2000 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 500 mA |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 0.5 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 0.2 ms |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 200 VDC |
| Termination Style | PC Pin |
