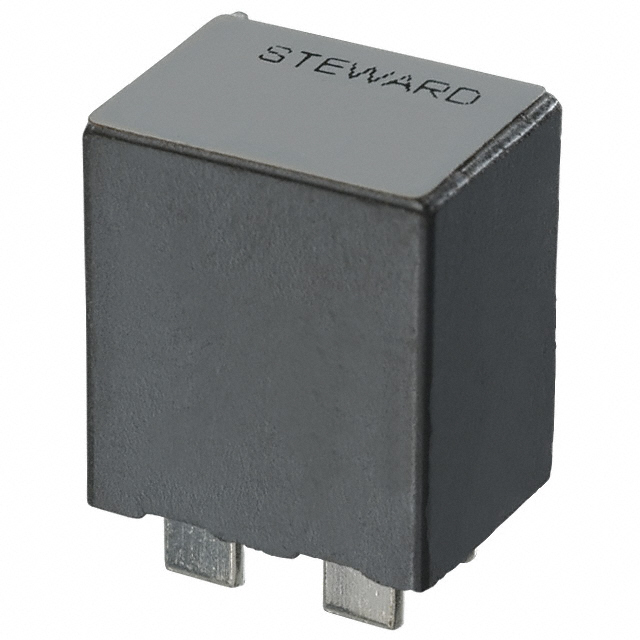

CM5441Z161B-00
ObsoleteLaird Technologies EMI
CMC 75A 2LN 160 OHM TH
CM5441Z161B-00
ObsoleteLaird Technologies EMI
CMC 75A 2LN 160 OHM TH
Description
General part information
CM5441Z161B-00
2 Line Common Mode Choke Through Hole 160 Ohms @ 100 MHz 75A DCR 0.3mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM5441Z161B-00 |
|---|---|
| Current Rating (Max) | 75 A |
| DC Resistance (DCR) (Max) | 0.3 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.6 in |
| Impedance | 160 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.54 in |
| Size / Dimension Width | 0.41 in |
