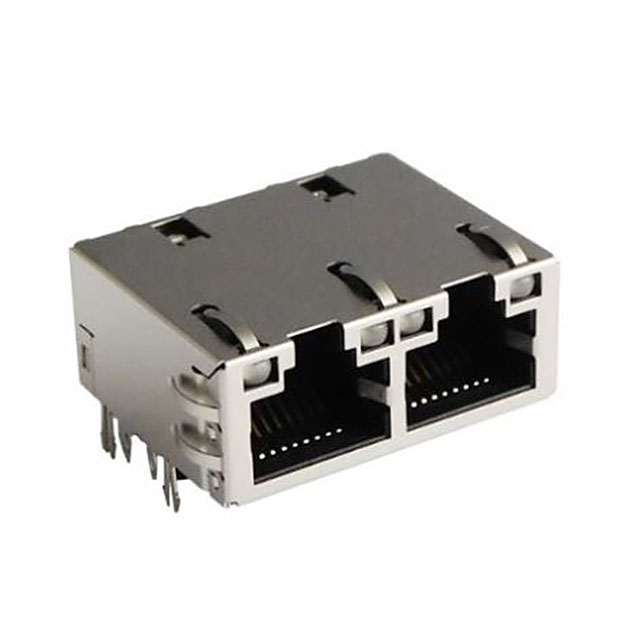

1840572-6

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN JACK 2PORT 1000 BASE-T PCB

Part	Contact Material	Tab Direction	Connector Type	Orientation	Number of Rows	Shield Material	Housing Material	Termination	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Shielding	Applications	Features	Mounting Type	Number of Ports	Contact Finish	Number of Cores per Jack
TRP Connector B.V. 1840572-6	Phosphor Bronze	Up	RJ45	90 °	1	Brass	Polyamide (PA), Nylon	Press-Fit	Green, Yellow	70 °C	0 °C	50 µin	1.27 µm	13.45 mm	0.53 in	Shielded, EMI Finger	10 Base-T, 100 Base-T, 1000 Base-T	Board Guide, Board Lock	Through Hole	2	Gold	8
TRP Connector B.V. 1840572-7	Phosphor Bronze	Up	RJ45	90 °	1	Brass	Polyamide (PA), Nylon	Press-Fit	Green - Green	70 °C	0 °C	50 µin	1.27 µm	13.45 mm	0.53 in	Shielded, EMI Finger	10 Base-T, 100 Base-T, 1000 Base-T	Board Guide, Board Lock	Through Hole	2	Gold	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	180	$ 14.09

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T

Technical documentation and resources

No documents available
