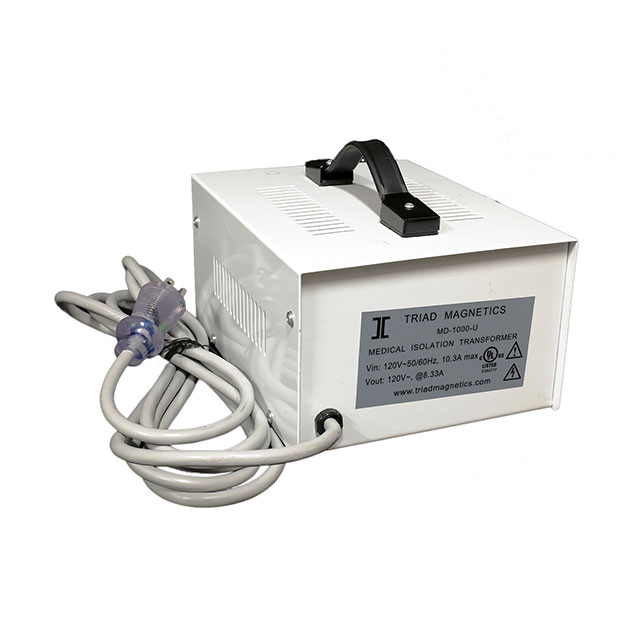

MD-1000-U
ActiveTriad Magnetics
SAFETY SITE TRANSFORMER, MEDICAL, 120V, 120V, 1 KVA, 8.33 A, NEMA 5-15P
MD-1000-U
ActiveTriad Magnetics
SAFETY SITE TRANSFORMER, MEDICAL, 120V, 120V, 1 KVA, 8.33 A, NEMA 5-15P
Description
General part information
MD-1000-U
SAFETY SITE TRANSFORMER, MEDICAL, 120V, 120V, 1 KVA, 8.33 A, NEMA 5-15P
Technical Specifications
Parameters and characteristics for this part
| Specification | MD-1000-U |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15R |
| 2nd Connector Count | 2 pcs |
| Power - Max | 1000 W |
| Type | Isolation, Medical Grade |
| Voltage - Primary | 120 V |
| Voltage - Secondary | 120 V |
| Weight | 22 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
