Description
General part information

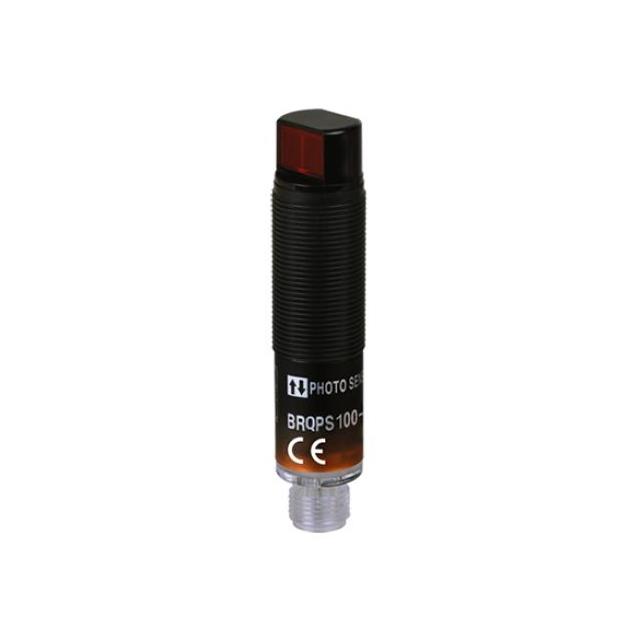

BRQPS100-DDTA-C-P
Reflective, Diffuse Optical Sensor 3.937" (100mm) PNP - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BRQPS100-DDTA-C-P |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON, Light-ON\Dark-ON, PNP - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 3.937 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
