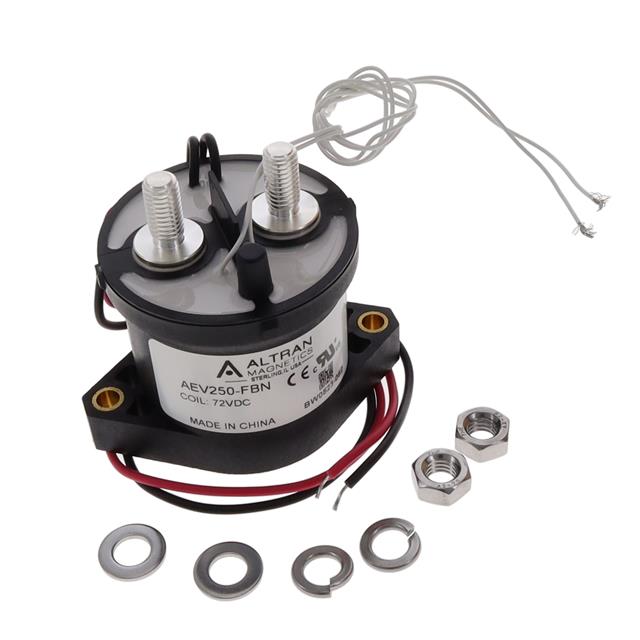

AEV250-FBN
ActiveAltran Magnetics, LLC
DC CONTACTOR 500A 72 VDC COIL
AEV250-FBN
ActiveAltran Magnetics, LLC
DC CONTACTOR 500A 72 VDC COIL
Description
General part information
AEV250-FBN
DC CONTACTOR 500A 72 VDC COIL
Technical Specifications
Parameters and characteristics for this part
| Specification | AEV250-FBN |
|---|---|
| Coil Voltage | 72 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 500 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 48 VDC |
| Must Release Voltage | 27 VDC |
| Operate Time | 25 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 12 ms |
| Switching Voltage DC (Max) | 1000 VDC |
| Termination Style | Wire Leads, Stud |
