TSP3066
ActivePasternack
PLUG RJ12(6X6) FLT CBL 100PK
TSP3066
ActivePasternack
PLUG RJ12(6X6) FLT CBL 100PK
Description
General part information
TSP3066

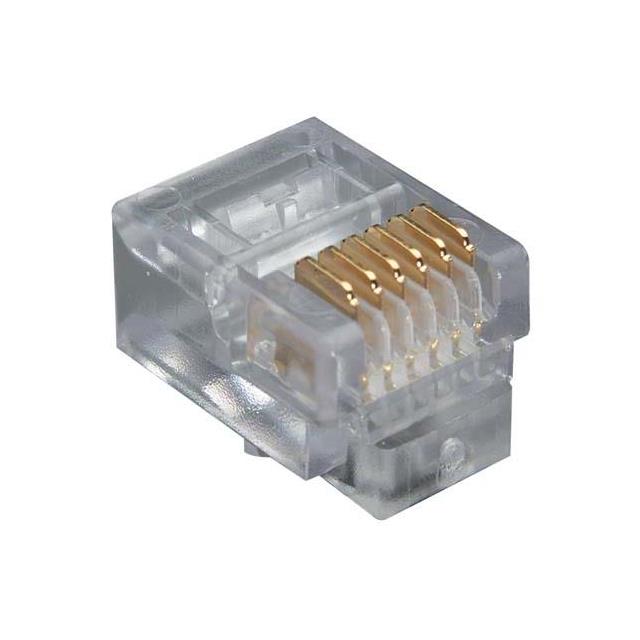

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Unshielded Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | TSP3066 |
|---|---|
| Cable Type | Stranded Wires, Flat Oval Cable |
| Color | Clear |
| Connector Type | Plug, RJ25, RJ11, RJ12, RJ14 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| Length | 0.525 in |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Shielding | Unshielded |
| Termination | Crimp |
