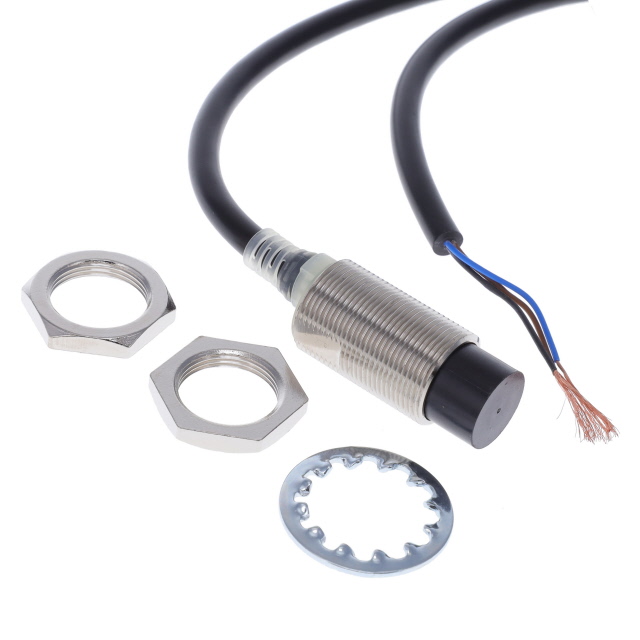

GX-318MLK-A-N-C5
ActivePanasonic Industrial Automation Sales
SENSOR M18 THRD NPN NO 5M LR
GX-318MLK-A-N-C5
ActivePanasonic Industrial Automation Sales
SENSOR M18 THRD NPN NO 5M LR
Description
General part information
GX-318MLK-A-N-C5
Inductive Proximity Sensor 0.504" (12.8mm) IP67, IP67G, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | GX-318MLK-A-N-C5 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67G, IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 600 Hz |
| Sensing Distance | 0.504 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
