83950 0105000

Active

Belden Inc.

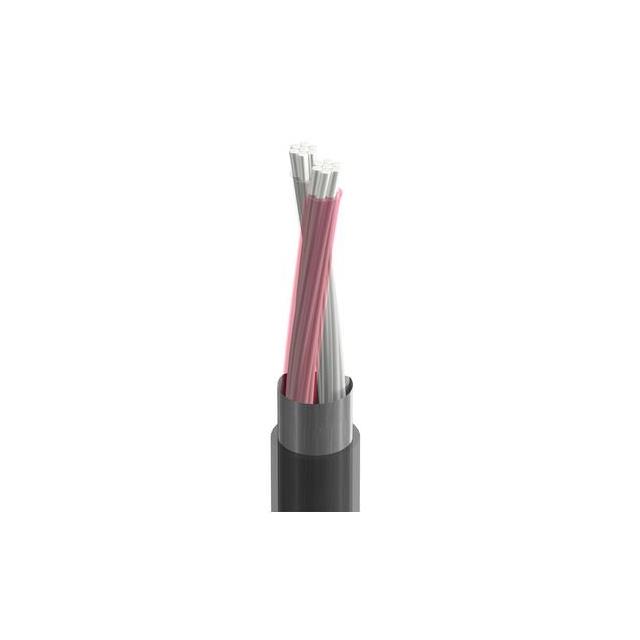

CABLE 2COND 20AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83950 0105000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Constantan, Iron
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.145 in
Jacket (Insulation) Diameter [diameter]	3.68 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.012 in
Jacket (Insulation) Thickness	0.305 mm
Jacket Color	Black
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Thermocouple
Wire Gauge	20 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Wire Gauge	Usage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket Color	Conductor Insulation	Number of Conductors	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Cable Type	Jacket (Insulation) Material	Length	Length
Belden Inc. 83950 0105000	28	7	200 °C	-70 °C	Aluminum	20 AWG	Thermocouple	Drain Wire	0.145 in	3.68 mm	Foil	Black	Fluorinated Ethylene-Propylene (FEP)	2	Constantan Iron	0.012 in	0.305 mm	100 %	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP) Plenum
Belden Inc. 83950 0101000	28	7	200 °C	-70 °C	Aluminum	20 AWG	Thermocouple	Drain Wire	0.145 in	3.68 mm	Foil	Black	Fluorinated Ethylene-Propylene (FEP)	2	Constantan Iron	0.012 in	0.305 mm	100 %	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP) Plenum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.02

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 20 AWG Foil 5000' (1524.0m)
