282822-8
ActiveTE Connectivity AMP Connectors

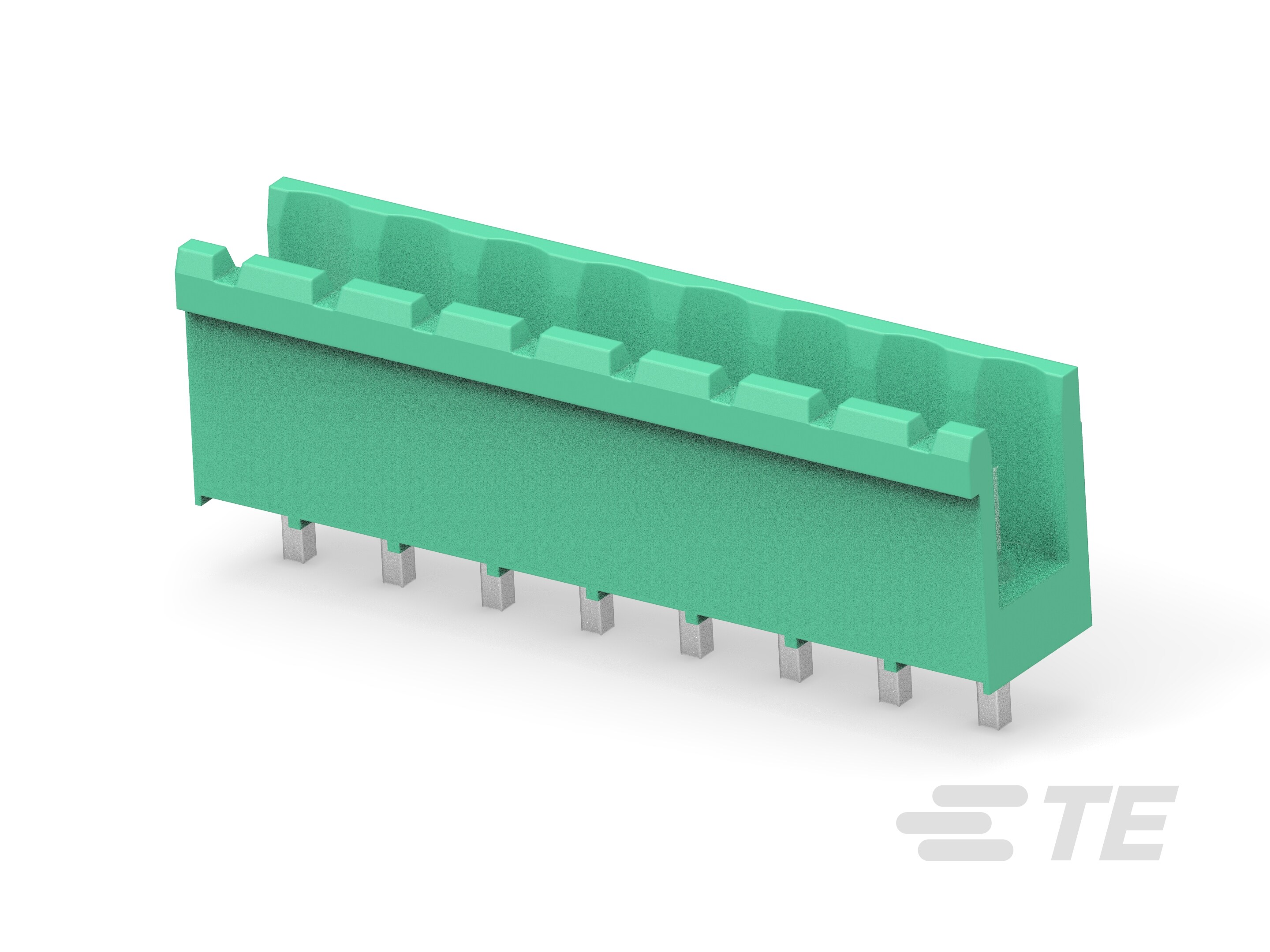

PLUGGABLE TERMINAL BLOCKS TERMI-BLOK HEADER ASSY90 8P.
282822-8
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS TERMI-BLOK HEADER ASSY90 8P.
Description
General part information
282822-8
8 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 282822-8 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Positions Per Level | 8 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - UL | 300 V |
