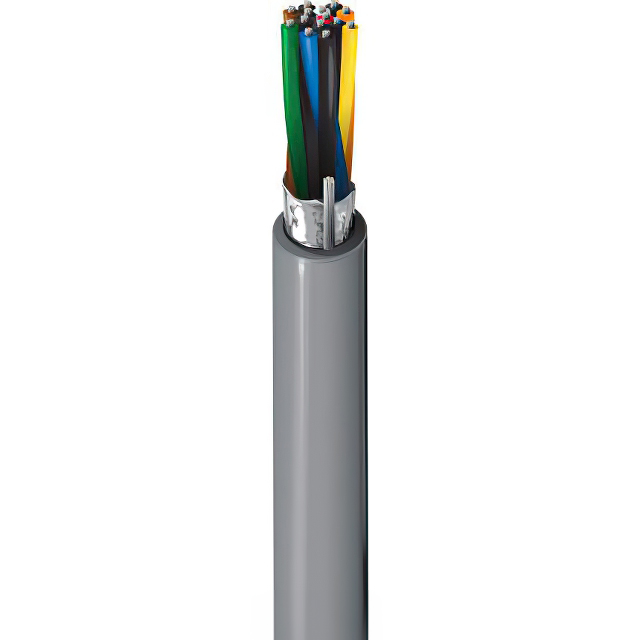

9507 060100 - 9507 060100

9507 060100

Active
Belden Inc.

MULTI-PAIR 14COND 24AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
9507 060100 - 9507 060100

9507 060100

Active
Belden Inc.

MULTI-PAIR 14COND 24AWG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification9507 060100
Cable TypeMulti-Pair
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]32 AWG
Conductor Strand [custom]7
FeaturesDrain Wire
Jacket (Insulation) Diameter [diameter]7.47 mm
Jacket (Insulation) Diameter [diameter]0.294 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorChrome
Length [x]30.5 m
Length [x]100 ft
Number of Conductors14
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
RatingsUL Style 2464
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
UsageComputer
Wire Gauge24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 100$ 5.42
200$ 5.15
300$ 5.00
500$ 4.81
700$ 4.69
1000$ 4.57

Description

General part information

9507 Series

14 (7 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 100.0' (30.5m)
