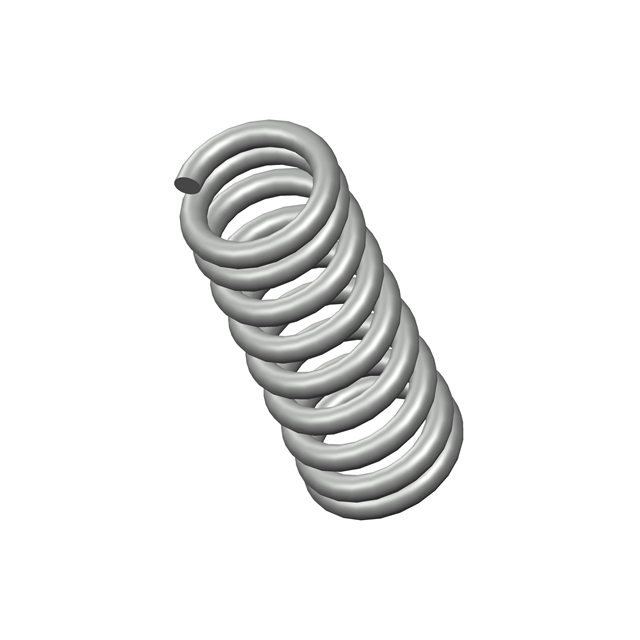

NN-3CS
ActiveCentury Spring Corp
COMP O= .188,L= .50,W= .030
NN-3CS
ActiveCentury Spring Corp
COMP O= .188,L= .50,W= .030
Description
General part information
NN-3CS
COMP O= .188,L= .50,W= .030
Technical Specifications
Parameters and characteristics for this part
| Specification | NN-3CS |
|---|---|
| Diameter - Inside | 0.128 in |
| Diameter - Outside | 0.188 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 42 lbs/in |
| Type | Compression |
| Wire Diameter | 0.03 in |
