Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2839415 | PT Series |
|---|---|---|
| Accessory Type | Base | Base |
| Color | - | Green, Yellow |
| Contact Mating Finish | - | Tin |
| Current - IEC | - | 10 A |
| Current - UL | - | 10 A |
| For Use With/Related Products | PT, Surge Protector | PT, Surge Protector |
| Height (Max) | - | 39.5 mm |
| Height (Max) | - | 1.555 in |
| Housing Color | - | Green, Yellow |
| Housing Material | - | Polyamide (PA), Nylon |
| Insulation Height | - | 13.15 mm |
| Insulation Height | - | 0.518 " |
| Length | - | 55 mm |
| Length | - | 2.165 in |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Free Hanging (In-Line), DIN Rail |
| Number of Levels | - | 1 |
| Number of Positions | - | 2 - 9 |
| Pitch | - | 5 mm |
| Pitch | - | 0.197 in |
| Plug Wire Entry | - | 90 ° |
| Positions Per Level | - | 9 |
| Stripping Length | - | 8 mm |
| Stripping Length | - | 12 mm |
| Terminal - Width | - | 3.5 - 8.2 mm |
| Termination Style | - | Screw - Rising Cage Clamp, Plug Receptacles, Push In, Spring |
| Torque - Screw | - | 3.5 Lb-In |
| Torque - Screw | - | 3.1 Lb-In |
| Torque - Screw | - | 0.4 Nm |
| Torque - Screw | - | 0.35 Nm |
| Type | - | Plug for Unshrouded Header, Plug Connection, Ground, Earth |
| Voltage - IEC | - | 630 V |
| Voltage - UL | - | 300 V |
| Wire Gauge or Range - AWG | - | 8 - 14 AWG |
| Wire Gauge or Range - AWG | - | 20 - 28 AWG |
| Wire Gauge or Range - mm² | - | 0.14 - 0.5 mm² |
| Wire Gauge or Range - mm² | - | 1.5 - 10 mm² |
| Wire Strip Length | - | 6 mm |
Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 26-14 AWG Screw
| Part | Pitch [x] | Pitch [x] | Housing Material | Insulation Height | Insulation Height | Contact Mating Finish | Type | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Mounting Type | Number of Levels | Plug Wire Entry | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Color | Positions Per Level | Voltage - UL | Wire Strip Length | Current - UL | Number of Positions | Material Flammability Rating | Termination Style | Current - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Voltage - IEC | Housing Color | Terminal - Width [y] | Height (Max) [Max] | Height (Max) [Max] | Stripping Length | Length [x] | Length [x] | Material - Insulation | For Use With/Related Products | Accessory Type | Stripping Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1755651 | 5 mm | 0.197 in | Polyamide (PA), Nylon | 13.15 mm | 0.518 " | Tin | Plug for Unshrouded Header | 3.5 Lb-In | 3.1 Lb-In | 0.4 Nm | 0.35 Nm | Free Hanging (In-Line) | 1 | 90 ° | 0.2 mm² | 2.5 mm² | Green | 9 | 300 V | 6 mm | 10 A | 9 | UL94 V-0 | Screw - Rising Cage Clamp | 10 A | 14 AWG | 28 AWG | 630 V | |||||||||||
Phoenix Contact 3212374 | Plug Connection | DIN Rail | 1 | 0.14 mm² | 1.5 mm² | UL94 V-0 | Plug Receptacles, Push In, Spring | 14 AWG | 26 AWG | Green, Yellow | 3.5 mm | 39.5 mm | 1.555 in | 8 mm | 55 mm | 2.165 in | Nylon, Polyamide (PA) | ||||||||||||||||||||||

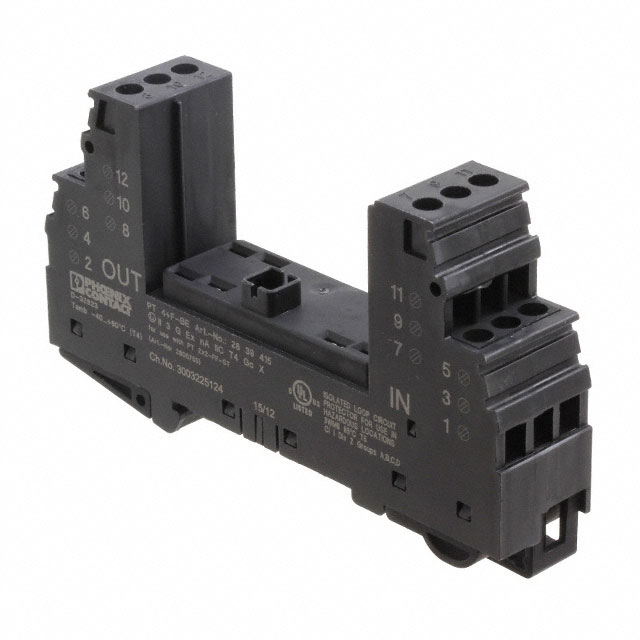

Phoenix Contact 2839415 | PT, Surge Protector | Base | |||||||||||||||||||||||||||||||||||||
Phoenix Contact 3211822 | Ground, Earth | 1 | 0.5 mm² | 10 mm² | Green, Yellow | 2 | UL94 V-0 | Push In, Spring | 8 AWG | 20 AWG | 8.2 mm | Nylon, Polyamide (PA) | 12 mm |
