1424472

Active

Phoenix Contact

CABLE GLAND 13-18.01MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-18.01MM M25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424472	G-INS-M25 Series

Color	Gray	Silver, Black, Gray
Includes	Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66, IP68, IP69, IP66/IP68
Material	Polyamide (PA), Nylon	Brass, Nickel Plated, Polyamide (PA), Nylon, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.669 - 0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	16.99 - 18.01 mm
Outside Cable Diameter (Min)	13 mm	13 mm
Outside Cable Diameter (Min)	-	10 - 11 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in	0.394 - 0.512 in
Thread Length	10 mm	8 - 10 mm
Thread Length	0.394 in	0.315 - 0.394 in
Thread Size	M25x1.5	M25x1.5, M25
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14MM M25 BRASS

Part	Includes	Material	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)
Phoenix Contact 1424527	O-Ring, Seal	Brass, Nickel Plated	Silver	14 mm	0.551 "	8 mm	0.315 in	0.394 in	10 mm	M25x1.5	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C
Phoenix Contact 1411134	Seal	Polyamide (PA), Nylon	Black			8 mm	0.315 in	0.433 in	11 mm	M25	Cable Gland	IP66/IP68	100 °C	-40 °C	16.99 mm	0.669 in
Phoenix Contact 1424482	Seal	Polyamide (PA), Nylon	Black			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-40 °C	18.01 mm	0.709 in	13 mm
Phoenix Contact 1424544	O-Ring, Seal	Stainless Steel	Silver			8 mm	0.315 in	0.433 in	11 mm	M25x1.5	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C	16.99 mm	0.669 in
Phoenix Contact 1424477	Seal	Polyamide (PA), Nylon	Gray			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-40 °C	18.01 mm	0.709 in	13 mm
Phoenix Contact 1424472	Seal	Polyamide (PA), Nylon	Gray			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-20 C	18.01 mm	0.709 in	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.27

General part information

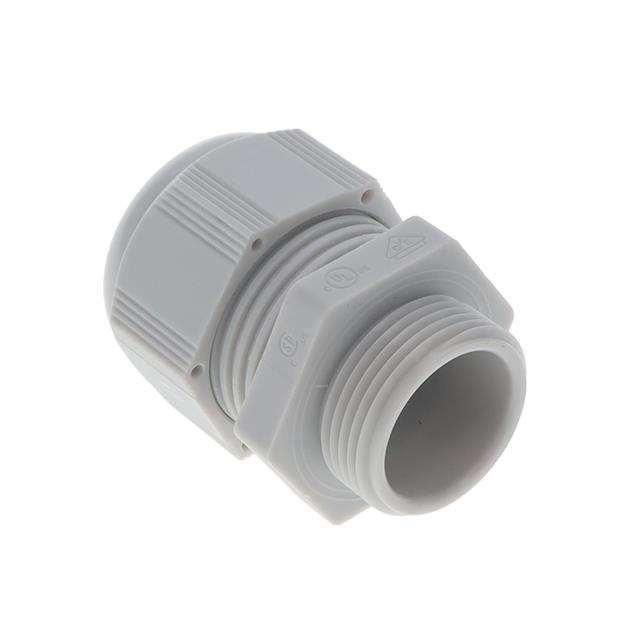

Cable Gland Polyamide (PA), Nylon M25x1.5 Gray
