FMAD1333
ActiveFairview Microwave
ADAPT JACK-PLUG TNC 1.3 VSWR
FMAD1333
ActiveFairview Microwave
ADAPT JACK-PLUG TNC 1.3 VSWR
Description
General part information
FMAD1333

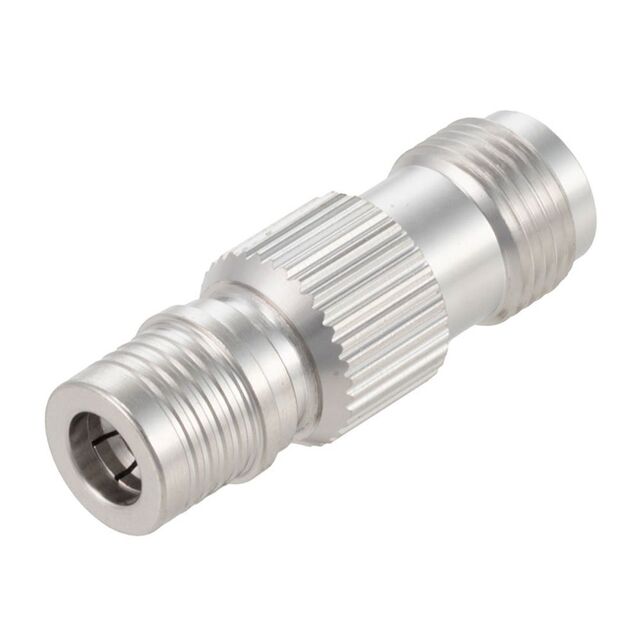

Adapter Coaxial Connector TNC Jack, Female Socket To QMA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1333 |
|---|---|
| Adapter Series | TNC to QMA |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | QMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
