Description
General part information

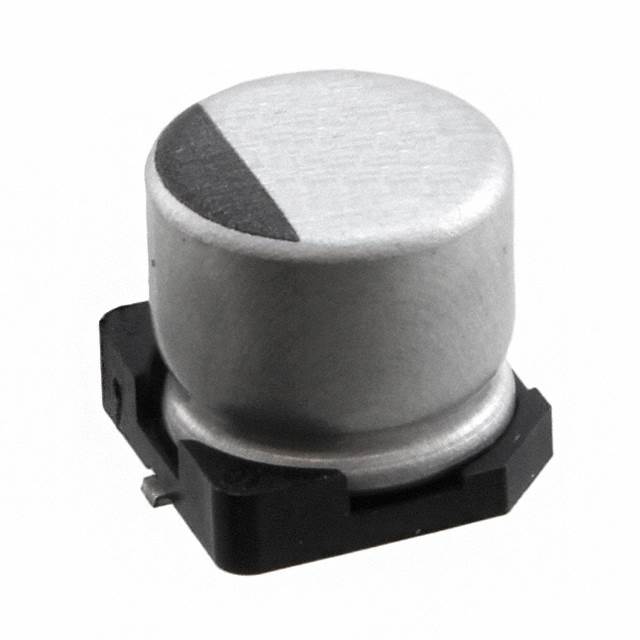

UWS1E470MCL1GS
47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UWS1E470MCL1GS |
|---|---|
| Applications | High Temperature Reflow |
| Capacitance | 47 µF |
| Height - Seated (Max) | 0.228 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current | 108.55 mA, 65 mA |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
