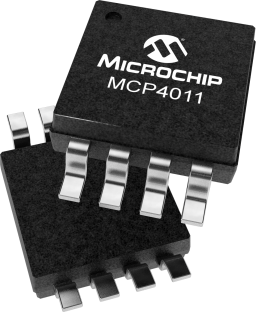

MSOP / 8

MCP4011T-103E/MS

Active
Microchip Technology

DIGITAL POTENTIOMETER, VOLATILE, 10 KOHM, SINGLE, 64 STEPS, ± 150 PPM/°C, 1.8 V TO 5.5 V, 8 PINS, PM… MORE

Find alt
MSOP / 8

MCP4011T-103E/MS

Active
Microchip Technology

DIGITAL POTENTIOMETER, VOLATILE, 10 KOHM, SINGLE, 64 STEPS, ± 150 PPM/°C, 1.8 V TO 5.5 V, 8 PINS, PM… MORE

Find alt

Description

General part information

mcp4011 Series

Volatile Digital Potentiometer in SOT-23, SOIC, MSOP and DFN packages

64 Taps: 63 Resistors with Taps to terminal A and terminal B

Simple Up/Down (U/D) Protocol

Technical Specifications

Parameters and characteristics for this part

SpecificationMCP4011T-103E/MS
ConfigurationPotentiometer
InterfaceCS), Up/Down (U/D
Memory TypeVolatile
Mounting TypeSurface Mount
Number of Circuits1
Number of Taps64
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Package Length0.118 in
Package Name8-TSSOP, 8-MSOP, 8-MSOP
Package Width3 mm
Resistance10 kOhm
Resistance - Wiper (Typ)70 Ohm
TaperLinear
Temperature Coefficient (Typ)150 ppm/°C
Tolerance20 %
Voltage - Supply (Maximum)5.5 V
Voltage - Supply (Minimum)1.8 V
