EPK116VS-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 10.16MM SCRW PLG
EPK116VS-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 10.16MM SCRW PLG
Description
General part information
EPK116VS-04P

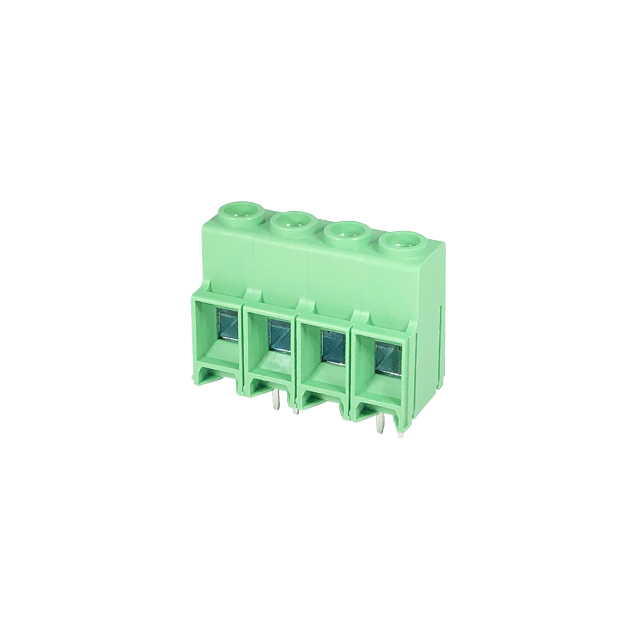

4 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | EPK116VS-04P |
|---|---|
| Color | Green |
| Current | 65 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.4 in |
| Positions Per Level | 4 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
