BA126
ActivePasternack
ADAPTOR F F/F M PUSH ON RA
BA126
ActivePasternack
ADAPTOR F F/F M PUSH ON RA
Description
General part information
BA126

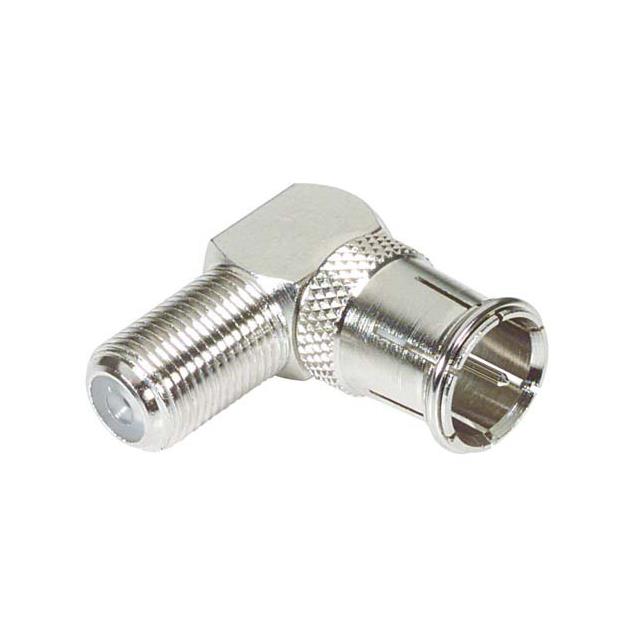

Adapter Coaxial Connector F Plug, Male Pin To F Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA126 |
|---|---|
| Adapter Series | F to F |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Tin |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | F Plug, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | F Jack |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Right Angle |
