28B0563-100
ActiveLaird Technologies EMI

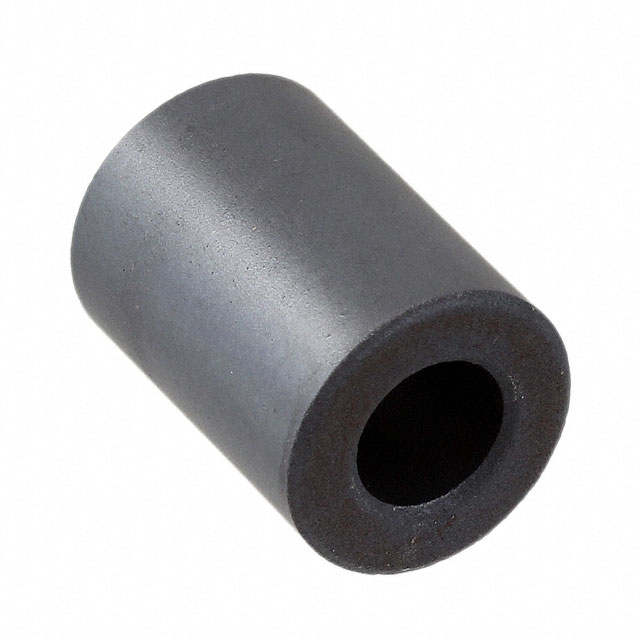

FERRITE CORE 217 OHM SOLID
28B0563-100
ActiveLaird Technologies EMI
FERRITE CORE 217 OHM SOLID
Description
General part information
28B0563-100
Solid Free Hanging Ferrite Core 217Ohm @ 100MHz ID 0.286" Dia (7.26mm) OD 0.562" Dia (14.27mm) Length 0.800" (20.32mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28B0563-100 |
|---|---|
| Design | Solid |
| Impedance | 217 Ohm |
| Inner Dimension (Diameter) | 0.286 in |
| Length | 0.8 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.562 in |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
