Description
General part information

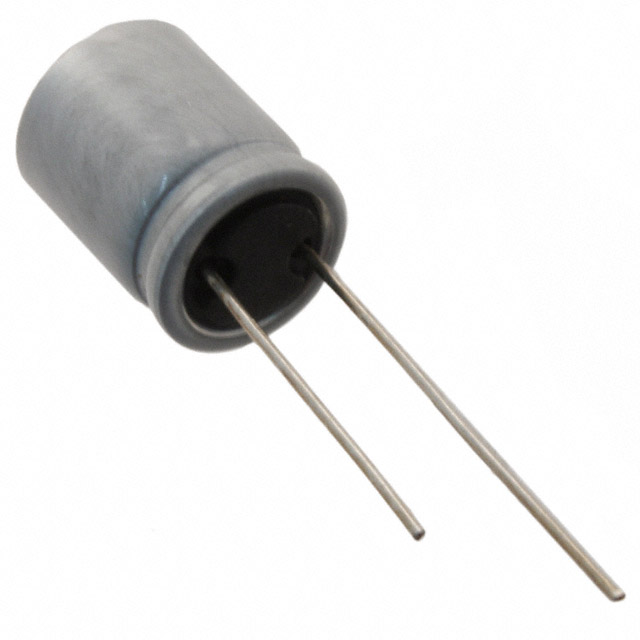

PLE0G122MDO1
1200 µF 4 V Aluminum - Polymer Capacitors Radial, Can 5mOhm 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PLE0G122MDO1 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1200 µF |
| ESR (Equivalent Series Resistance) | 5 mOhm |
| Height - Seated (Max) | 0.512 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 7.2 A |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 4 V |
