LCCA30532-FT5
ActivePasternack
SMA M TO BNC F USING LC085TB, 5
LCCA30532-FT5
ActivePasternack
SMA M TO BNC F USING LC085TB, 5
Description
General part information
LCCA30532-FT5

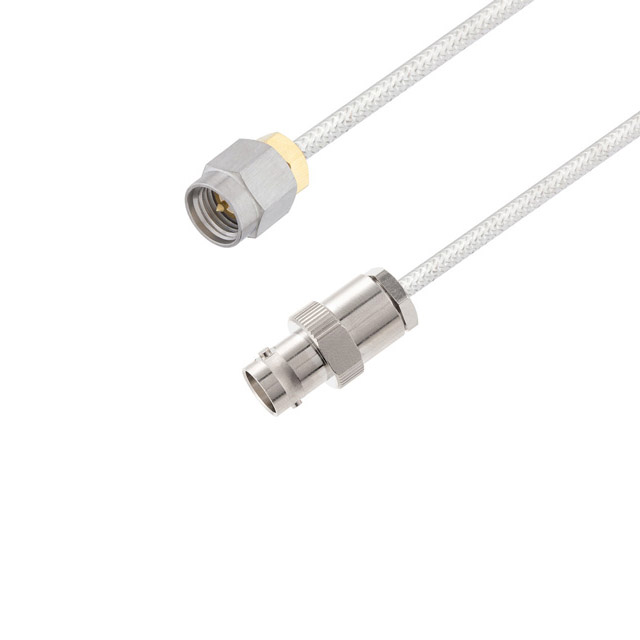

Cable Assembly Coaxial BNC to SMA LC085TB 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30532-FT5 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
