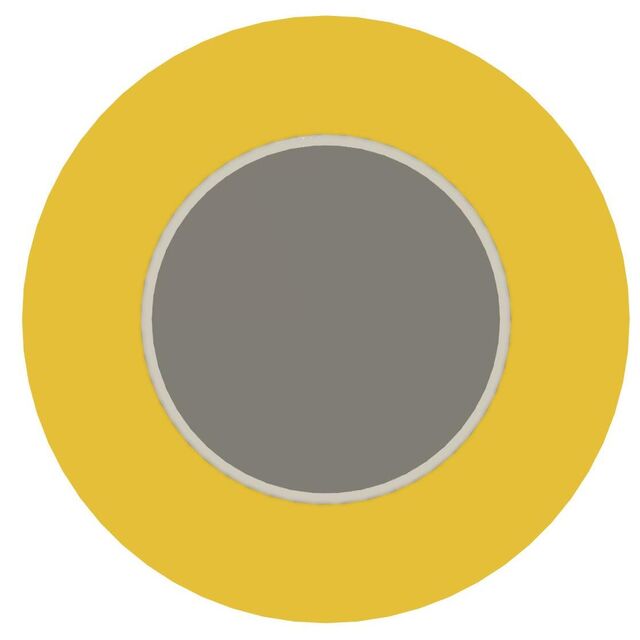

AB4122B
ActivePUI Audio, Inc.
PIEZO BENDER, 2.2 KHZ, 30 NF, 250 OHM, 1.62" DIA, 0.03" H
AB4122B
ActivePUI Audio, Inc.
PIEZO BENDER, 2.2 KHZ, 30 NF, 250 OHM, 1.62" DIA, 0.03" H
Description
General part information
AB4122B
AB4122B is an ultrathin and lightweight 41mm bender. It features low power consumption.
Technical Specifications
Parameters and characteristics for this part
| Specification | AB4122B |
|---|---|
| Capacitance | 30000 pF |
| Frequency | 2.2 kHz |
| Impedance | 250 Ohm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 1.614 in |
| Termination | None |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
