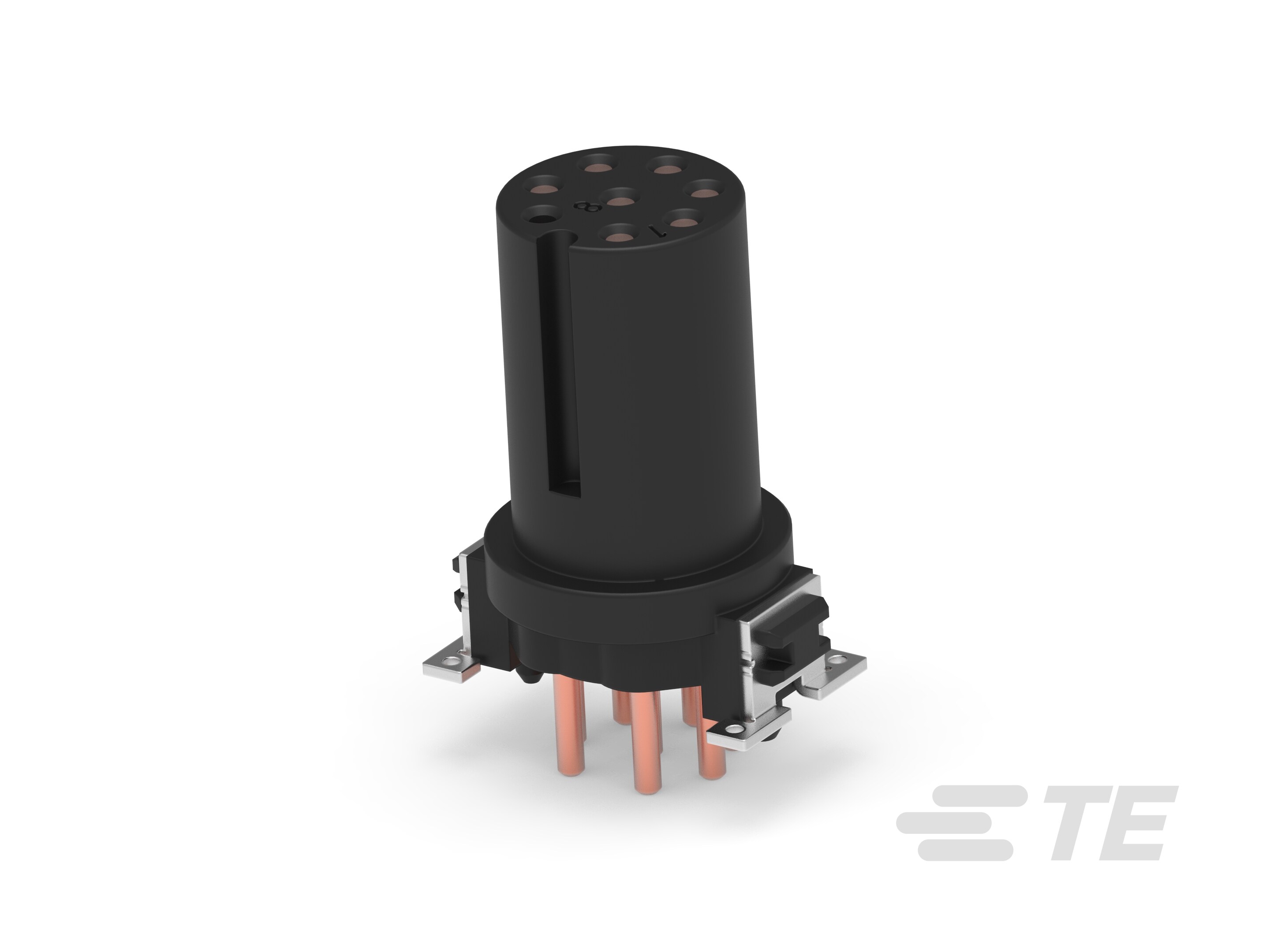

Specification	474681-E

Color	Black
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Current Rating	2 A
Fastening Type	Push-Pull
Features	Requires Shell, Board Guide, Insert Only
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	LCP, Liquid Crystal Polymer
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 V

M12 Connector Series

...

Part	Contact Finish - Mating	Primary Material	Shell Material	Mounting Type	Features	Material Flammability Rating	Color	Orientation	Voltage Rating	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Termination	Connector Type	Current Rating	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Contact Material	Assembly Configuration	1st Connector Number of Positions	1st Connector Gender	Cable Type	1st Connector Mounting Type	Length	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	2nd Connector Type	Usage	1st Connector Type	Fastening Type
TE Connectivity AMP Connectors 225522-E	Gold	Plastic	Glass Filled Nylon 10T Polyamide (PA10T)	Right Angle Through Hole	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A	30 V	8	Dust Tight Waterproof	IP67	M12-8	Solder	Insert Male Pins	2 A	Shielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 1SET311131R0000							Multiple				Dust Tight Waterproof	IP67					Unshielded					Standard	5 positions	Female Sockets	Individual	Panel Mount	0.66 ft	B	M12	All	Wire Leads	Industrial Environments	Plug
TE Connectivity AMP Connectors 235265-E	Gold			Right Angle Through Hole	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A	60 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Insert Male Pins	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 364175-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D		4	Dust Tight Water Resistant Waterproof	IP65 IP67	M12-4	Solder	Female Sockets Insert	4.8 A	Unshielded	85 °C	-25 °C		Copper Alloy
TE Connectivity AMP Connectors 454949-E				Surface Mount	Board Guide Insert Only Requires Shell		Black	D		4			M12-4	Solder Eyelet(s)	Female Sockets Insert	4.8 A	Unshielded
TE Connectivity AMP Connectors 474580-E	Gold	Plastic	Liquid Crystal Polymer (LCP)	Surface Mount	Board Guide Insert Only Requires Shell		Black	T	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Insert Male Pins	4 A	Shielded	85 °C	-25 °C	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 484936-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Female Sockets Insert	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 494167-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A		4	Dust Tight Water Resistant Waterproof	IP65 IP67	M12-4	Solder	Insert Male Pins		Unshielded	85 °C	-25 °C		Copper Alloy
TE Connectivity AMP Connectors 484937-E	Gold	Plastic	Liquid Crystal Polymer (LCP)	Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder Eyelet(s)	Female Sockets Insert	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer														Push-Pull
TE Connectivity AMP Connectors 234041-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D		4	Dust Tight Waterproof	IP67	M12-4	Solder Eyelet(s)	Female Sockets Insert	4.8 A	Unshielded	125 °C	-55 °C
