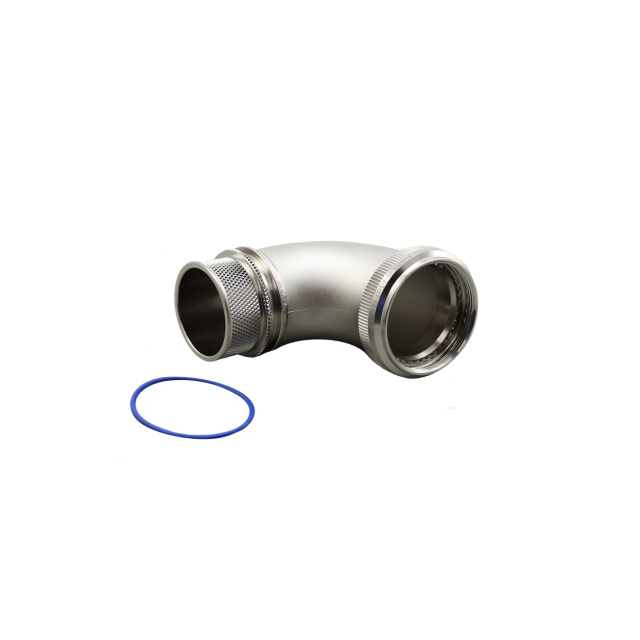

Specification	BTH3-23-17-1-C-SE

Cable Exit Angle	90 °
Cable Opening	1.062 in
Color	Silver
Diameter - Outside	1.575 in
Features	Bandstrap
For Use With/Related Products	IV, MIL-DTL-38999 Series III
Includes	Backshell, Boot, Bandstrap, O-Ring
Includes Total Count	4 pcs
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	23
Shell Size - Insert	23
Shielding	Unshielded
Thread Diameter	34 mm
Thread Pitch	1 mm
Type	Banding, Backshell

BTH3 Series

...

Part	Includes Total Count	Includes	For Use With/Related Products	Plating	Cable Exit Angle	Shell Size - Insert	Thread Pitch	Thread Diameter	Material	Cable Opening	Shielding	Color	Diameter - Outside	Type	Features	Shell Size - Insert
TE Connectivity AMP Connectors BTH3-17-09-1-C-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Electroless Nickel	90 °	17	1 mm	25 mm	Aluminum Alloy	0.562 in	Unshielded	Silver	1.28 in	Backshell Banding	Bandstrap
TE Connectivity AMP Connectors BTH3-25-18-1-B-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Cadmium	90 °	25	1 mm	37 mm	Aluminum Alloy	1.126 in	Unshielded	Olive Drab	1.713 in	Backshell Banding	Bandstrap
TE Connectivity AMP Connectors BTH3-15-10-1-C-SE
TE Connectivity AMP Connectors BTH3-17-11-1-ZN-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Zinc Nickel	90 °	17	1 mm	25 mm	Aluminum Alloy	0.688 in	Unshielded	Black	1.28 in	Backshell Banding	Bandstrap
TE Connectivity AMP Connectors BTH3-19-12-1-C-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Electroless Nickel	90 °	19	1 mm	28 mm	Aluminum Alloy	0.75 in	Unshielded	Silver	1.398 in	Backshell Banding	Bandstrap	19
TE Connectivity AMP Connectors BTH3-15-07-1-C-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Electroless Nickel	90 °	15	1 mm	22 mm	Aluminum Alloy	0.438 in	Unshielded	Silver	1.142 in	Backshell Banding	Bandstrap	15
TE Connectivity AMP Connectors BTH3-11-04-1-B-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Cadmium	90 °	11	1 mm	15 mm	Aluminum Alloy	0.25 in	Unshielded	Olive Drab	0.827 in	Backshell Banding	Bandstrap	11
TE Connectivity AMP Connectors BTH3-11-05-1-B-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Cadmium	90 °	11	1 mm	15 mm	Aluminum Alloy	0.312 in	Unshielded	Olive Drab	0.827 in	Backshell Banding	Bandstrap	11
TE Connectivity AMP Connectors BTH3-21-11-1-C-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Electroless Nickel	90 °	21	1 mm	31 mm	Aluminum Alloy	0.688 in	Unshielded	Silver	1.457 in	Backshell Banding	Bandstrap	21
TE Connectivity AMP Connectors BTH3-19-10-1-ZN-SE	4 pcs	Backshell Bandstrap Boot O-Ring	IV MIL-DTL-38999 Series III	Zinc Nickel	90 °	19	1 mm	28 mm	Aluminum Alloy	0.625 in	Unshielded	Black	1.398 in	Backshell Banding	Bandstrap	19
