LCCA30169-FT1
ActivePasternack
N MALE TO N MALE USING LMR-200-F
LCCA30169-FT1
ActivePasternack
N MALE TO N MALE USING LMR-200-F
Description
General part information
LCCA30169-FT1

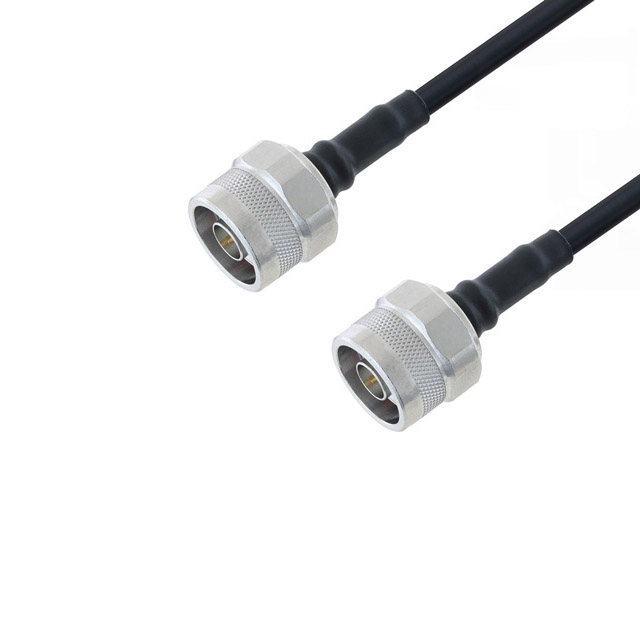

Cable Assembly Coaxial N-Type to N-Type LMR 200 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30169-FT1 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 200 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
