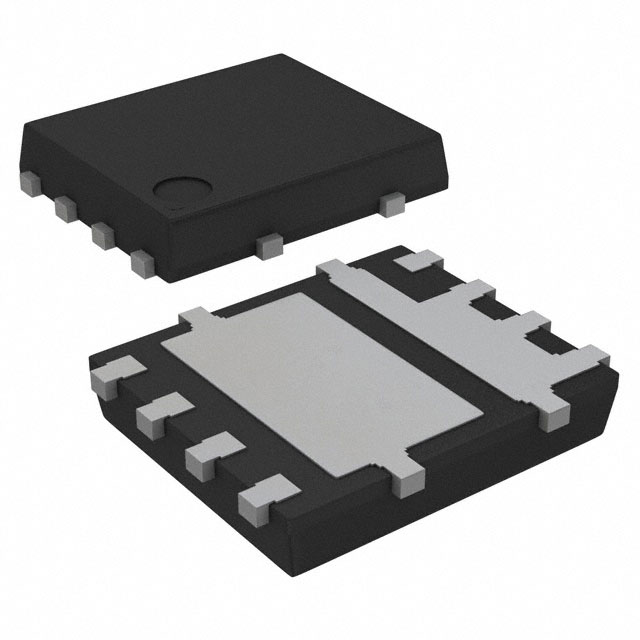

ZXTR1135PD8-13

Active

Diodes Inc

STANDARD REGULATOR POS 5V13V 0.05A/0.053A 8-PIN POWERDI EP T/R

Search across all available documentation for this part.

Active

Diodes Inc

STANDARD REGULATOR POS 5V13V 0.05A/0.053A 8-PIN POWERDI EP T/R

Technical Specifications

Parameters and characteristics for this part

STANDARD REGULATOR POS 5V13V 0.05A/0.053A 8-PIN POWERDI EP T/R

Part	Mounting Type	Output Configuration	Number of Regulators	Package / Case	Voltage - Output (Min/Fixed)	Supplier Device Package	Current - Output	Output Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	PSRR	Operating Temperature [Max]	Operating Temperature [Min]
Diodes Inc ZXTR1135PD8-13	Surface Mount	Positive	2	8-PowerTDFN	5 V, 13 V	PowerDI5060-8 (Type B)	50 mA	1.81 mOhm	780 µA	100 V	45 dB, 57 dB	125 ¯C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 50mA, 50mA PowerDI5060-8 (Type B)
