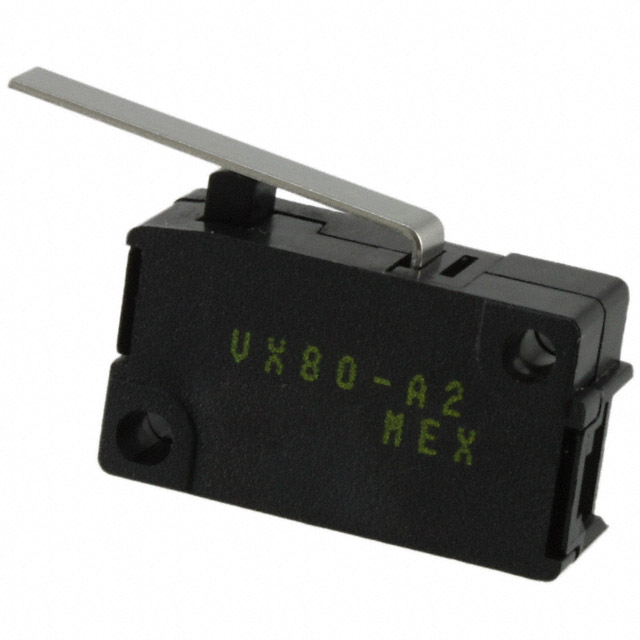

VX80-A2
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT DGTL OC 10MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VX80-A2
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT DGTL OC 10MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VX80-A2 | VX80-A Series |
|---|---|---|
| Actuator Type | Lever, Straight | Lever, Straight |
| Circuit | Open Collector, Digital | Open Collector, Digital |
| Current Rating (Amps) | 10 mA | 10 mA |
| Differential Travel | 0.1 mm | 0.1 - 0.2 mm |
| Differential Travel | 0.004 in | 0.004 - 0.008 in |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Force | 40 gf | 21 - 40 gf |
| Operating Position | 13.94 mm | 12.6 - 13.94 mm |
| Operating Position | 0.549 in | 0.497 - 0.549 in |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overtravel | 2.16 mm | 2.16 - 4.06 mm |
| Overtravel | 0.085 in | 0.085 - 0.16 in |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Connector | Connector |
| Voltage Rating - DC | 24 V | 24 V |
VX80-A Series
SWITCH SNAP ACT DGTL OC 10MA 24V
| Part | Termination Style | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - DC | Circuit | Differential Travel | Differential Travel | Switch Function | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions VX80-A3 | Connector | 21 gf | -40 °C | 70 °C | 10 mA | 12.6 mm | 0.497 in | 0.16 in | 4.06 mm | 24 V | Digital, Open Collector | 0.008 in | 0.2 mm | Off-Mom | Chassis Mount | Lever, Straight |
Honeywell Sensing and Productivity Solutions VX80-A2 | Connector | 40 gf | -40 °C | 70 °C | 10 mA | 13.94 mm | 0.549 in | 0.085 in | 2.16 mm | 24 V | Digital, Open Collector | 0.004 in | 0.1 mm | Off-Mom | Chassis Mount | Lever, Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VX80-A Series
Switch Digital, Open Collector Chassis Mount
