FGJ.0B.304.CLLD52

Active

LEMO

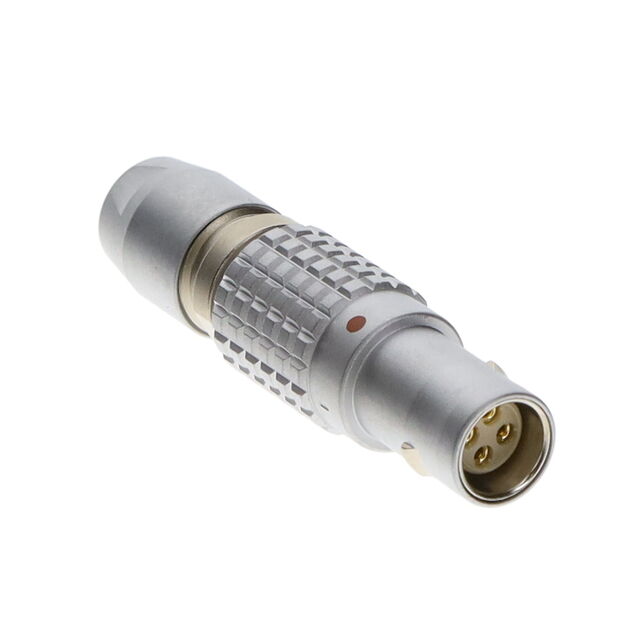

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGJ.0B.304.CLLD52

Active

LEMO

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGJ.0B.304.CLLD52	FGJ.0B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.22 in
Cable Opening	-	5.3 mm
Cable Opening	-	5.6 mm
Cable Opening	-	0.209 in
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.091 - 0.126 in
Cable Opening	-	2.3 - 3.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	0.13 - 4.2 mm
Cable Opening [diameter]	5.2 mm	3.3 - 5.2 mm
Color	Silver	Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.7 - 0.9 mm
Contact Type	-	Crimp
Current Rating (Amps)	7 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	4	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 309
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	-	For Female Sockets

FGJ.0B Series

CONN PLUG FMALE 2P GOLD SLDR CUP

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Contact Material	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Mounting Type	Connector Type	Number of Positions	Current Rating (Amps)	Insert Material	Shell Material	Shell Finish	Ingress Protection	Shell Size - Insert	Material Flammability Rating	Color	Contact Finish - Mating	Type	Note	Contact Size	Contact Type	Contact Shape	Housing Color	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FGJ.0B.302.CLLD52Z	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J	0.165 in, 0.205 in	4.2 mm	5.2 mm	Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	2	10 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	302	UL94 V-0	Silver	Gold
LEMO FGJ.0B.305.CYZZ	Detent Lock, Push-Pull	-55 °C	250 °C	Backshell			J							Shielded	Free Hanging (In-Line)	Plug Housing			Polyetheretherketone (PEEK)	Brass	Chrome	IP50	305				For Female Sockets	Contacts Not Included	0.7 mm	Crimp	Circular	Silver
LEMO FGJ.0B.304.CLLD52	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J	0.165 in, 0.205 in	4.2 mm	5.2 mm	Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	4	7 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	304	UL94 V-0	Silver	Gold
LEMO FGJ.0B.304.CYPD56	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J				Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	4	7 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	304	UL94 V-0	Silver	Gold							Crimp	0.22 in	5.3 mm	5.6 mm	0.209 in
LEMO FGJ.0B.304.CYMD52	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J	0.165 in, 0.205 in	4.2 mm	5.2 mm	Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	4	7 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	304	UL94 V-0	Silver	Gold							Crimp
LEMO FGJ.0B.303.CYMD52	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J	0.165 in, 0.205 in	4.2 mm	5.2 mm	Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug		8 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	303	UL94 V-0	Silver	Gold							Crimp
LEMO FGJ.0B.304.CLLD42	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J				Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	4	7 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	304	UL94 V-0	Silver	Gold												0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FGJ.0B.302.CLLD42Z	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J				Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	2	10 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	302	UL94 V-0	Silver	Gold												0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FGJ.0B.303.CYZZ	Detent Lock, Push-Pull	-55 °C	250 °C	Backshell			J							Shielded	Free Hanging (In-Line)	Plug Housing			Polyetheretherketone (PEEK)	Brass	Chrome	IP50	303				For Female Sockets	Contacts Not Included	0.9 mm	Crimp	Circular	Silver
LEMO FGJ.0B.302.CLLD42	Push-Pull	-55 °C	250 °C	Backshell	Metal	Bronze	J				Brass, Chrome	59 Áin	1.5 Ám	Shielded	Free Hanging (In-Line)	Female Sockets, Plug	2	10 A	Polyetheretherketone (PEEK)	Brass	Chrome	IP50	302	UL94 V-0	Silver	Gold												0.126 in	4.2 mm	0.165 in	3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.06
		10	$ 25.75

Description

General part information

FGJ.0B Series

4 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
