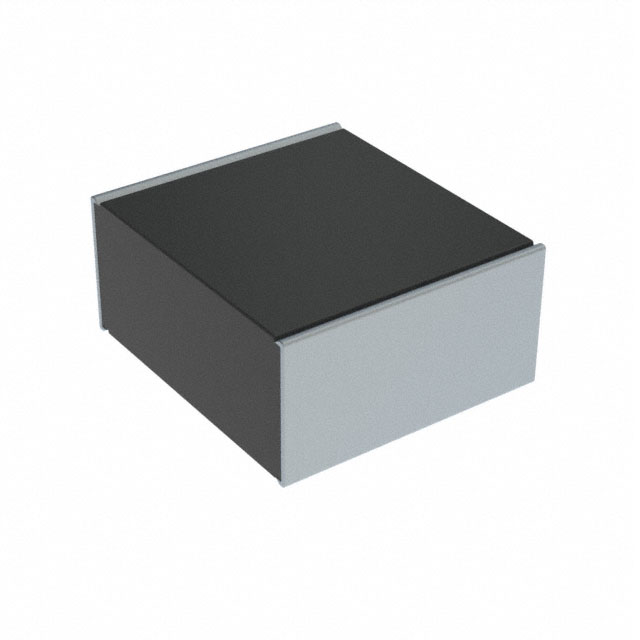

Specification	SMDTF04100YA00JT00

Applications	DC Filtering, DC Link
Capacitance	1 µF
Dielectric Material	Metallized, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	0.287 in
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	6054 (153137 Metric)
Size / Dimension Length	0.602 in
Size / Dimension Width	0.539 in
Termination	Solder Pads
Tolerance	5 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 VDC

SMDTF0 Series

...

Part	Voltage Rating - DC	Size / Dimension Width	Size / Dimension Length	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Termination	Package / Case	Mounting Type	Dielectric Material	Height - Seated (Max)	Capacitance	Tolerance
WIMA SMDTF03220TB00MQ00	250 VDC	0.24 in	0.283 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2824 (7260 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.209 in	0.22 µF	20 %
WIMA SMDTF03470VA00KR00	250 VDC	0.299 in	0.402 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	4030 (10276 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.209 in	0.47 µF	10 %
WIMA SMDTF03100VA00MR00	250 VDC	0.299 in	0.402 in	DC Filtering DC Link General Purpose	125 °C	-55 °C	160 V	Solder Pads	4030 (10276 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.209 in	0.1 µF	20 %
WIMA SMDTF02100TA00MQ00	250 VDC	0.24 in	0.283 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2824 (7260 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.13 in	10000 pF	20 %
WIMA SMDTF02330VA00KS00	250 VDC	0.299 in	0.402 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	4030 (10276 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.209 in	0.033 µF	10 %
WIMA SMDTF02150TA00KS00	250 VDC	0.24 in	0.283 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2824 (7260 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.13 in	0.015 µF	10 %
WIMA SMDTF02150QA00MS00	250 VDC	0.201 in	0.224 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2220 (5750 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.15 in	0.015 µF	20 %
WIMA SMDTF04100YA00JS00	250 VDC	0.539 in	0.602 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	6054 (153137 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.287 in	1 µF	5 %
WIMA SMDTF02220TA00MS00	250 VDC	0.24 in	0.283 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2824 (7260 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.13 in	0.022 µF	20 %
WIMA SMDTF02680TA00MQ00	250 VDC	0.24 in	0.283 in	DC Filtering DC Link	125 °C	-55 °C	160 V	Solder Pads	2824 (7260 Metric)	Surface Mount	Metallized Polyester Polyethylene Terephthalate (PET)	0.13 in	0.068 µF	20 %
