870-577
ActiveWAGO Corporation

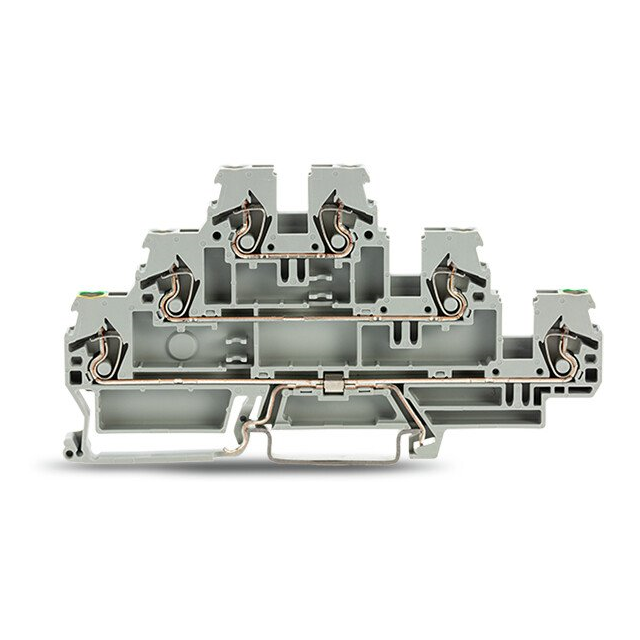

TRIPLE-DECK TERMINAL BLOCK, GROUND CONDUCTOR/THROUGH/THROUGH TERMINAL BLOCK
870-577
ActiveWAGO Corporation
TRIPLE-DECK TERMINAL BLOCK, GROUND CONDUCTOR/THROUGH/THROUGH TERMINAL BLOCK
Description
General part information
870-577
Terminal Block Connector 6 Position Feed Through Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 870-577 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Grounded Levels | 1 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Positions | 6 |
| Stripping Length (Max) | 7 mm |
| Stripping Length (Min) | 6 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
