A6KS-162RS-R100

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6KS-162RS-R100

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 4.89
		300	$ 4.44
		500	$ 4.12
		1000	$ 3.82
		2500	$ 3.67

Description

General part information

A6KS Series

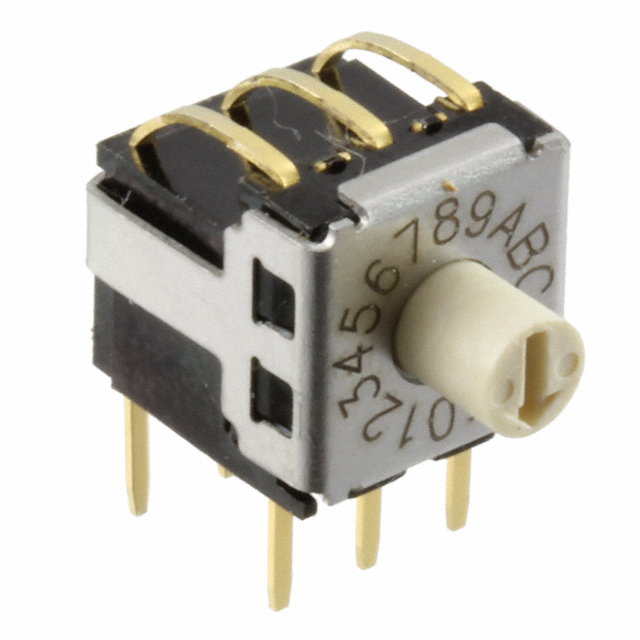

Dip Switch Hexadecimal 16 Position Surface Mount Rotary with Shaft Actuator 25mA 24VDC

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6KS-162RS-R100	A6KS Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Rotary with Shaft	Rotary with Shaft, Rotary for Tool
Circuit	Hexadecimal	Hexadecimal, BCD
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	20000 Steps	20000 Steps
Height Above Board	6 mm	3 - 6 mm
Height Above Board	0.236 in	0.118 - 0.236 in
Height Above Board	-	7.45 mm
Height Above Board	-	0.293 in
Length [x]	7.2 mm	7.2 mm
Length [x]	0.283 "	0.283 "
Mounting Type	Surface Mount	Surface Mount, Right Angle, Surface Mount
Number of Positions	16	16
Number of Positions	-	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.05 - 0.1 in
Pitch [x]	2.54 mm	1.27 - 2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	False

A6KS Series

SWITCH ROTARY DIP HEX 0.025A 24V

Part	Actuator Type	Termination Style	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Voltage Rating	Contact Finish	Mounting Type	Circuit	Electrical Life	Actuator Level	Height Above Board	Height Above Board	Number of Positions	Pitch
Omron Electronics Inc-EMC Div A6KSV-164RS	Rotary with Shaft	Gull Wing	25 mA	16	-30 ░C	80 C	7.45 mm	0.293 in	0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount, Right Angle	Hexadecimal	20000 Steps	Raised
Omron Electronics Inc-EMC Div A6KS-104RF	Rotary for Tool	Gull Wing	25 mA		-30 ░C	80 C			0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount	BCD	20000 Steps	Flush, Recessed	0.118 in	3 mm	10
Omron Electronics Inc-EMC Div A6KSV-164RS-R100	Rotary with Shaft	Gull Wing	25 mA	16	-30 ░C	80 C	7.45 mm	0.293 in	0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount, Right Angle	Hexadecimal	20000 Steps	Raised
Omron Electronics Inc-EMC Div A6KSV-164RF	Rotary for Tool	Gull Wing	25 mA	16	-30 ░C	80 C	7.45 mm	0.293 in	0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount, Right Angle	Hexadecimal	20000 Steps	Flush, Recessed
Omron Electronics Inc-EMC Div A6KS-102RS-R100	Rotary with Shaft	Gull Wing	25 mA		-30 ░C	80 C			0.1 in	2.54 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount	BCD	20000 Steps	Raised	0.236 in	6 mm	10	Full
Omron Electronics Inc-EMC Div A6KS-104RF-R100	Rotary for Tool	Gull Wing	25 mA		-30 ░C	80 C			0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount	BCD	20000 Steps	Flush, Recessed	0.118 in	3 mm	10
Omron Electronics Inc-EMC Div A6KSV-104RS	Rotary with Shaft	Gull Wing	25 mA		-30 ░C	80 C	7.45 mm	0.293 in	0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount, Right Angle	BCD	20000 Steps	Raised			10
Omron Electronics Inc-EMC Div A6KS-104RS-R100	Rotary with Shaft	Gull Wing	25 mA		-30 ░C	80 C			0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount	BCD	20000 Steps	Raised	0.236 in	6 mm	10
Omron Electronics Inc-EMC Div A6KSV-104RF	Rotary for Tool	Gull Wing	25 mA		-30 ░C	80 C	7.45 mm	0.293 in	0.05 in	1.27 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount, Right Angle	BCD	20000 Steps	Flush, Recessed			10
Omron Electronics Inc-EMC Div A6KS-102RF	Rotary for Tool	Gull Wing	25 mA		-30 ░C	80 C			0.1 in	2.54 mm	7.2 mm	0.283 "	24 VDC	Gold	Surface Mount	BCD	20000 Steps	Flush, Recessed	0.118 in	3 mm	10	Full
