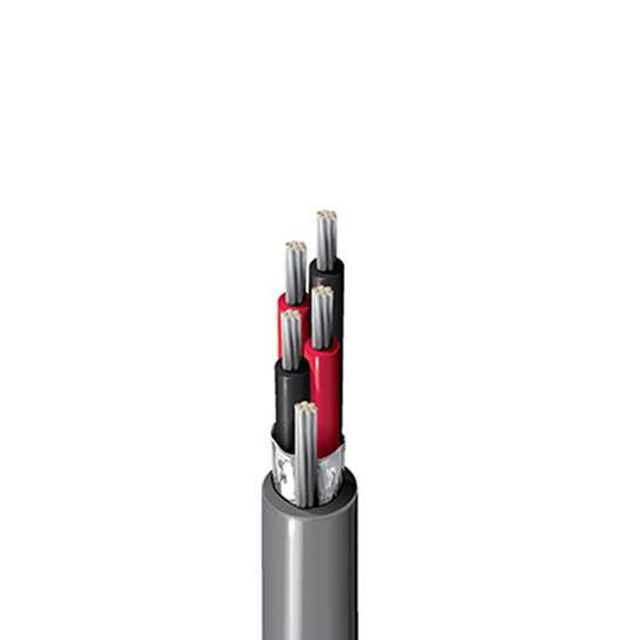

9556 0605000 - MFG_9559-0601000.jpg

9556 0605000

Active
Belden Inc.

MULTI-CONDUCTOR CABLES 6 PR #18 PVC FS PVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial ApplicationsDatasheet
9556 0605000 - MFG_9559-0601000.jpg

9556 0605000

Active
Belden Inc.

MULTI-CONDUCTOR CABLES 6 PR #18 PVC FS PVC

Deep-Dive with AI

DocumentsCabling Solutions for Industrial ApplicationsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification9556 0605000
Cable TypeMulti-Pair
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]19
Conductor Strand [custom]30 AWG
FeaturesRip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]12.62 mm
Jacket (Insulation) Diameter [diameter]0.497 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness1.346 mm
Jacket (Insulation) Thickness0.053 in
Jacket ColorChrome
Number of Conductors12
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-30 ░C
RatingsUL Style 2464
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
UsageInstrumentation
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 5000$ 10.93

Description

General part information

9556 Series

12 (6 Pair) Conductor Multi-Pair Cable Chrome 18 AWG Foil 5000' (1524.0m)
