704.101.018I
ActiveEAO

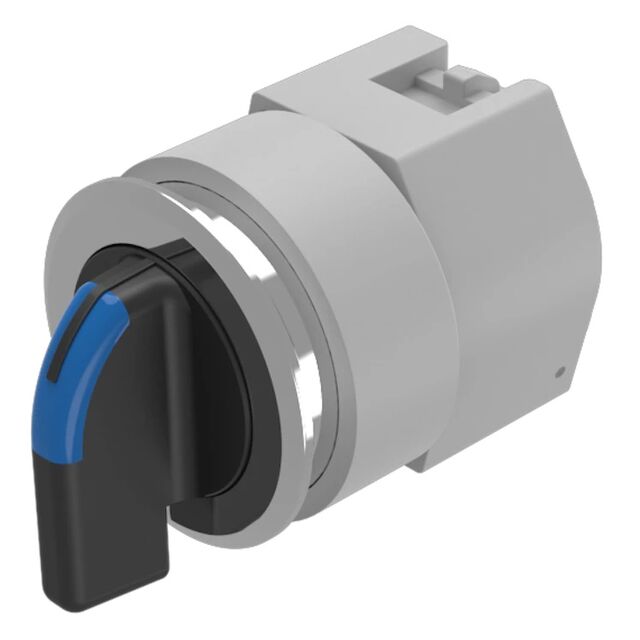

SELECTOR SWITCH-ACTUATOR ILLUMINATED 2 POSITIONS 12 OCLOCK, NATURAL FLAT D35 MAIN LONG LEVER ALU
Deep-Dive with AI
Search across all available documentation for this part.
704.101.018I
ActiveEAO
SELECTOR SWITCH-ACTUATOR ILLUMINATED 2 POSITIONS 12 OCLOCK, NATURAL FLAT D35 MAIN LONG LEVER ALU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.101.018I | 704.101 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Selector | Selector |
| Illumination | Illuminated | Non-Illuminated, Illuminated |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Contact Block(s), Illumination Source |
| Type | Maintained | Maintained |
704.101 Series
CONFIG SW BODY SELECT NON-ILLUM
| Part | (Select First, Then Apply Filters) Compatible Series | Actuator Type | Requires | Panel Cutout Dimensions | Type | Illumination |
|---|---|---|---|---|---|---|
EAO 704.101.0 | 04, EAO | Selector | Contact Block(s) | 22.3 mm | Maintained | Non-Illuminated |
EAO 704.101.0I | 04, EAO | Selector | Contact Block(s), Illumination Source | 22.3 mm | Maintained | Illuminated |
04, EAO | Selector | Contact Block(s) | 30.5 mm | Non-Illuminated | ||
EAO 704.101.018I | 04, EAO | Selector | Contact Block(s), Illumination Source | 30.5 mm | Maintained | Illuminated |
04, EAO | Selector | Contact Block(s) | 30.5 mm | Maintained | Non-Illuminated | |
EAO 704.101.0A | 04, EAO | Selector | Contact Block(s) | Maintained | Non-Illuminated | |
04, EAO | Selector | Contact Block(s) | 30.5 mm | Non-Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
704.101 Series
Configurable Switch Body Selector Illuminated
