YB25CKW01-5C-JC

Active

NKK SWITCHES

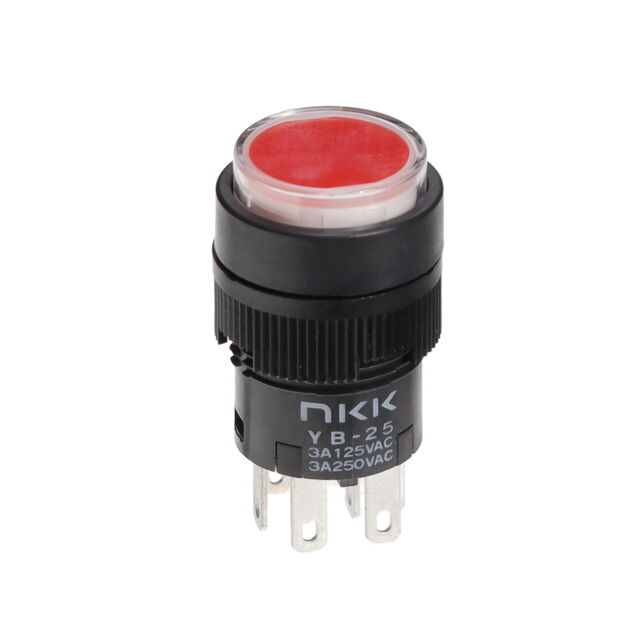

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB25CKW01-5C-JC

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.09
		10	$ 18.25
		100	$ 15.89
Newark	Each	1	$ 40.41
		5	$ 38.38
		10	$ 35.57
		25	$ 32.45
		50	$ 28.08
		100	$ 26.21
		250	$ 23.87

Description

General part information

YB25CK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB25CKW01-5C-JC	YB25CK Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Plunger for Cap
Circuit	DPDT	DPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)	Clear, Clear (Yellow Filter/Diffuser), Red, Clear (Red Filter/Diffuser), White
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Voltage Reduction Lighting	Voltage Reduction Lighting, Tactile/Audible Feedback
Illumination Type, Color	Red, LED	LED, Green, Amber, Green/Red, Red, White, Blue
Illumination Voltage (Nominal)	1.9 VDC	1.9 - 24 VDC
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Mom	On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB25CK Series

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination Type, Color	Current Rating (Amps)	Mechanical Life	Actuator Marking	Type	Illumination Voltage (Nominal)	Termination Style	Termination Style	Termination Style	Circuit	Switch Function	Features	Electrical Life	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC
NKK SWITCHES YB25CKW01-5F-JF	Panel Mount, Front	16 mm	Button, Round	Green, LED	3 A	1000000 Cycles	No Marking	Illuminated, Standard	2.2 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKG01-5D-JD	Panel Mount, Front	16 mm	Button, Round	Amber, LED	0.4 VA	1000000 Cycles	No Marking	Illuminated, Standard	2 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Tactile/Audible Feedback	100000 Cycles	Clear	28 V	50 °C	-25 °C	28 V
NKK SWITCHES YB25CKW01-1D05-JE	Panel Mount, Front	16 mm	Button, Round	Amber, LED	3 A	1000000 Cycles	No Marking	Illuminated, Standard	5 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear (Yellow Filter/Diffuser)	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKW01-2CF12-JB	Panel Mount, Front	16 mm	Button, Round	Green/Red, LED	3 A	1000000 Cycles	No Marking	Illuminated, Standard	12 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKW01-5F12-JB	Panel Mount, Front	16 mm	Button, Round	Green, LED	3 A	1000000 Cycles		Illuminated, Standard	12 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom		100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKW01-1D05-JB	Panel Mount, Front	16 mm	Button, Round	Amber, LED	3 A	1000000 Cycles	No Marking	Illuminated, Standard	5 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKW01-1C12-JA	Panel Mount, Front	16 mm	Button, Round	LED, Red	3 A	1000000 Cycles	No Marking	Illuminated, Standard	12 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKW01-1C05-JA	Panel Mount, Front	16 mm	Button, Round	LED, Red	3 A	1000000 Cycles	No Marking	Illuminated, Standard	5 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
NKK SWITCHES YB25CKG01-5F24-JF	Panel Mount, Front	16 mm	Button, Round	Green, LED	0.4 VA	1000000 Cycles	No Marking	Illuminated, Standard	24 V	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Tactile/Audible Feedback	100000 Cycles	Clear	28 V	50 °C	-25 °C	28 V
NKK SWITCHES YB25CKW01-6B-JB	Panel Mount, Front	16 mm	Button, Round	LED, White	3 A	1000000 Cycles	No Marking	Illuminated, Standard	3.3 VDC	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	On-Mom	Voltage Reduction Lighting	100000 Cycles	Clear	30 V	50 °C	-25 °C	125 V
