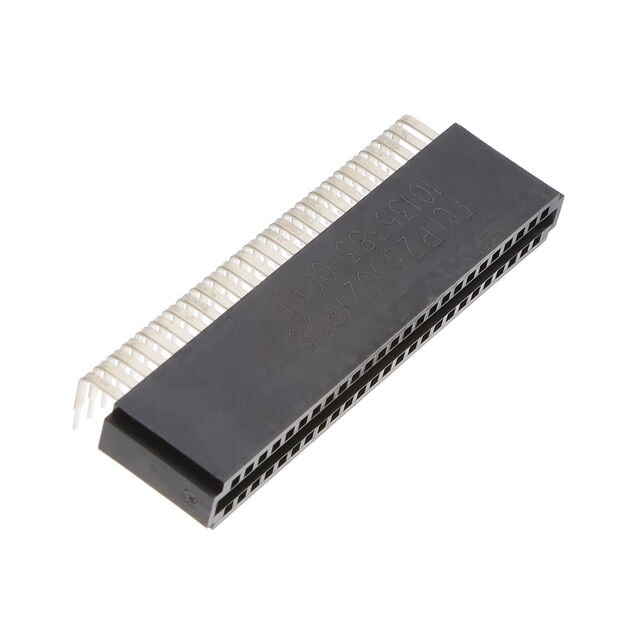

10135383-001LF

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FML 50POS 0.100

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FML 50POS 0.100

Technical Specifications

Parameters and characteristics for this part

Specification	10135383-001LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

Part	Mounting Type	Pitch [x]	Pitch [x]	Gender	Read Out	Card Thickness	Card Thickness	Card Type	Number of Positions/Bay/Row [custom]	Contact Material	Material - Insulation	Number of Positions	Termination	Number of Rows	Color
Amphenol ICC (FCI) 10135383-001LF	Through Hole Right Angle	2.54 mm	0.1 in	Female	Dual	0.062 in	1.57 mm	Non Specified - Dual Edge	25	Copper Alloy	Thermoplastic	50	Solder	2	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 (Power) Position Female Connector Non Specified - Dual Edge 0.100" (2.54mm) Black
