TDINV3000W050B-KIT

Active

Transphorm

EVAL BOARD FOR TP65H050G4WS

Search across all available documentation for this part.

Active

Transphorm

EVAL BOARD FOR TP65H050G4WS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 816.00

General part information

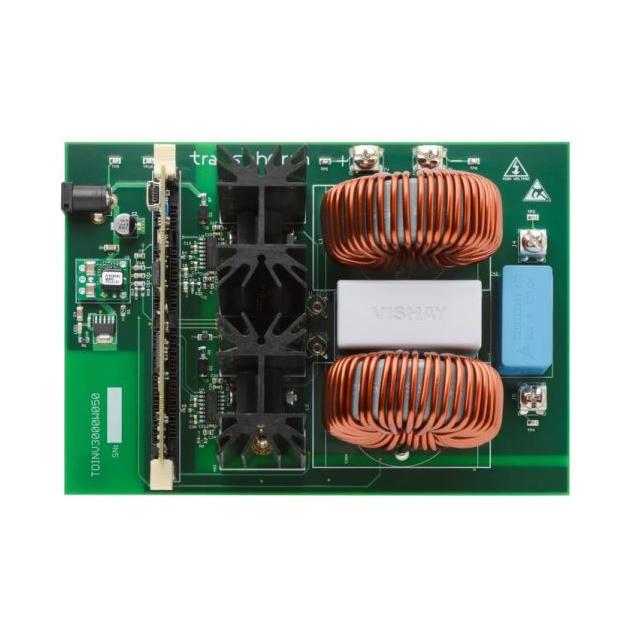

TP65H050G4WS - DC/AC Inverter 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TDINV3000W050B-KIT	TP65H050 Series

Board Type	Fully Populated	Fully Populated
Current - Continuous Drain (Id) @ 25°C	-	34 A
Drain to Source Voltage (Vdss)	-	650 V
Drive Voltage (Max Rds On, Min Rds On)	-	10 V
FET Type	-	N-Channel
Frequency - Switching	50 kHz	50 kHz
Gate Charge (Qg) (Max) @ Vgs	-	24 nC
Input Capacitance (Ciss) (Max) @ Vds	-	1000 pF
Main Purpose	DC/AC Inverter	DC/AC Inverter
Mounting Type	-	Through Hole
Operating Temperature	-	-55 °C
Operating Temperature	-	150 °C
Outputs and Type	Non-Isolated	Non-Isolated
Outputs and Type	1	1
Package / Case	-	TO-247-3
Power - Output	3 kW	3 kW
Power Dissipation (Max)	-	119 W
Rds On (Max) @ Id, Vgs	-	60 mOhm
Regulator Topology	Full-Bridge	Full-Bridge
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	TO-247-3
Technology	-	GaNFET (Gallium Nitride)
Vgs (Max)	-	20 V
Vgs(th) (Max) @ Id	-	4.8 V
Voltage - Input	400 VDC	400 VDC

EVAL BOARD FOR TP65H050G4WS

Part	Regulator Topology	Frequency - Switching	Supplied Contents	Power - Output	Voltage - Input	Board Type	Main Purpose	Outputs and Type	Outputs and Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	FET Type	Technology	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type
Transphorm TDINV3000W050B-KIT	Full-Bridge	50 kHz	Board(s)	3 kW	400 VDC	Fully Populated	DC/AC Inverter	Non-Isolated	1
Transphorm TP65H050G4WS										650 V	4.8 V	1000 pF	119 W	34 A	TO-247-3	-55 °C	150 °C	TO-247-3	60 mOhm	24 nC	20 V	N-Channel	GaNFET (Gallium Nitride)	10 V	Through Hole
