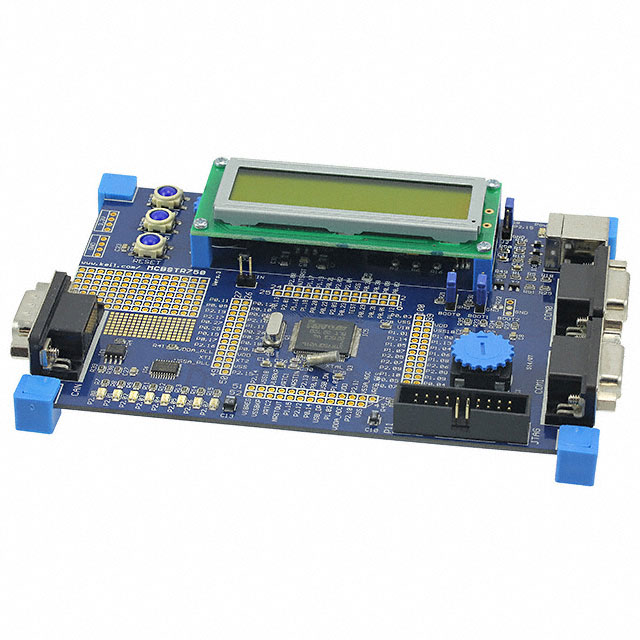

STR750-SK/KEIL
ActiveSTMicroelectronics
STR7XX/STR91X EVAL BRD
Deep-Dive with AI
Search across all available documentation for this part.
STR750-SK/KEIL
ActiveSTMicroelectronics
STR7XX/STR91X EVAL BRD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STR750-SK/KEIL | STR750 Series |
|---|---|---|
| Board Type | Evaluation Platform | Evaluation Platform |
| Connectivity | - | CANbus, SSP, USB, I2C, UART/USART, SPI, SSI |
| Contents | Cable(s), ULINK™ Programmer, Board(s) | Cable(s), ULINK™ Programmer, Board(s) |
| Core Processor | ARM7 | ARM7, ARM7® |
| Core Size | - | 32-Bit Single-Core |
| Data Converters | - | 10 |
| Data Converters | - | 16 |
| Mounting Type | Fixed | Fixed, Surface Mount |
| Number of I/O | - | 72 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 100-LQFP |
| Peripherals | - | WDT, PWM, DMA |
| Program Memory Size | - | 64 KB |
| Program Memory Type | - | FLASH |
| RAM Size | - | 16 K |
| Speed | - | 60 MHz |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | STR7xx, STR91x | STR7xx, STR91x |
| Voltage - Supply (Vcc/Vdd) | - | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | - | 3 V |
STR750 Series
STR7XX/STR91X EVAL BRD
| Part | Core Processor | Utilized IC / Part | Contents | Mounting Type | Board Type | Type | Core Size | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Oscillator Type | Peripherals | Number of I/O | RAM Size | Connectivity | Speed | Program Memory Type | Data Converters [custom] | Data Converters [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STR750-SK/KEIL | ARM7 | STR7xx, STR91x | Board(s), Cable(s), ULINK™ Programmer | Fixed | Evaluation Platform | MCU 32-Bit | ||||||||||||||||
STMicroelectronics STR750FV0T6 | ARM7® | Surface Mount | 32-Bit Single-Core | 64 KB | 5.5 V | 3 V | Internal | DMA, PWM, WDT | 72 | 16 K | CANbus, I2C, SPI, SSI, SSP, UART/USART, USB | 60 MHz | FLASH | 10 | 16 | 85 °C | -40 °C | 100-LQFP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 198.75 | |
Description
General part information
STR750 Series
STR7xx, STR91x STR7 ARM7 MCU 32-Bit Embedded Evaluation Board
