2154640-2
ActiveTE Connectivity AMP Connectors

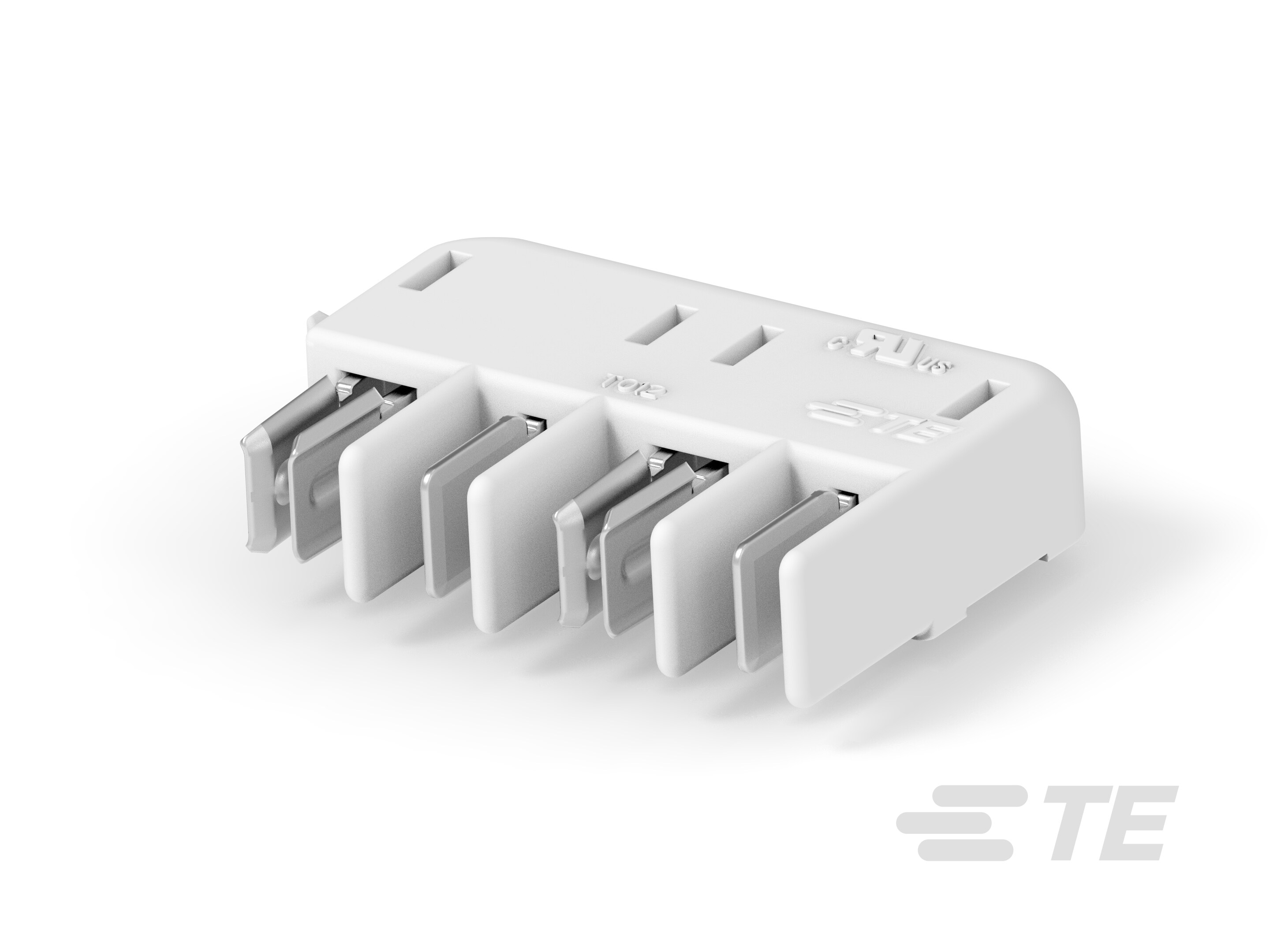

HERM BLADE & RECEPT ASSY W/LATCH & POSTS
2154640-2
ActiveTE Connectivity AMP Connectors
HERM BLADE & RECEPT ASSY W/LATCH & POSTS
Description
General part information
2154640-2
PCB Mount Hermaphroditic Connector, Right Angle, Board-to-Board, 4 Position, 4 mm [.157 in] Centerline, Tin (Sn), Surface Mount, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2154640-2 |
|---|---|
| Connector Type | Receptacle, Hermaphroditic, Blade |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Fastening Type | Locking Ramp |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Style | Board |
| Termination | Solder |
