LCCA31056-M1
ActivePasternack
PLENUM 4.1/9.5 MALE RIGHT ANGLE
LCCA31056-M1
ActivePasternack
PLENUM 4.1/9.5 MALE RIGHT ANGLE
Description
General part information
LCCA31056-M1

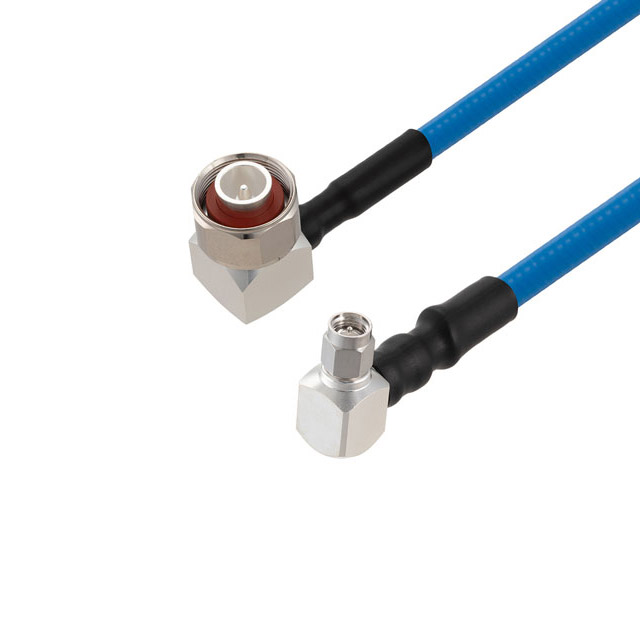

Cable Assembly Coaxial 4.1/9.5 to N-Type SPP-250LLPL 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31056-M1 |
|---|---|
| 1st Connector | 4.1/9.5 Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.1 mm |
| 1st Connector Dimension (2) | 9.5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 39.4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.1/9.5 to N-Type |
