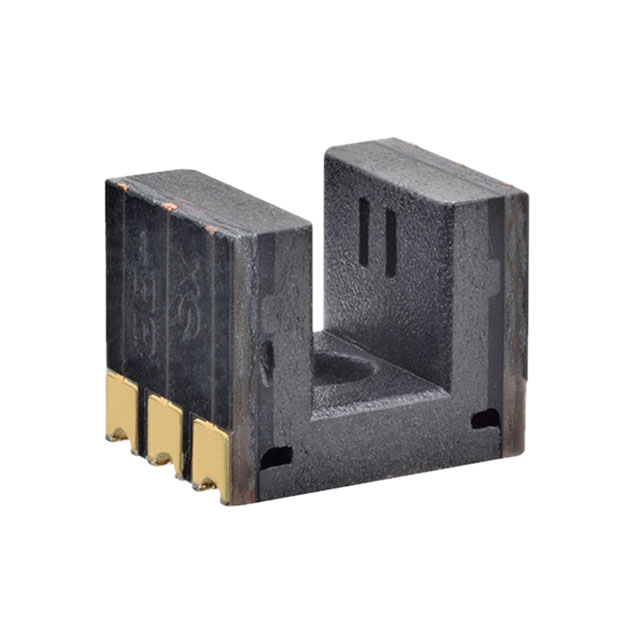

EE-SX1321
ActiveOmron Electronics Inc-EMC Div
SENSOR OPT SLOT PHOTOTRANS MODUL
EE-SX1321
ActiveOmron Electronics Inc-EMC Div
SENSOR OPT SLOT PHOTOTRANS MODUL
Description
General part information
EE-SX1321
Optical Sensor Through-Beam 0.079" (2mm) Phototransistor Module, Connector, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | EE-SX1321 |
|---|---|
| Current - Collector (Ic) (Max) | 20 mA |
| Current - DC Forward (If) (Max) | 25 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | Phototransistor |
| Package / Case | Slot Type, Module, Connector |
| Sensing Distance | 0.079 " |
| Sensing Method | Through-Beam |
