3-61038-1
ActiveTE Connectivity AMP Connectors

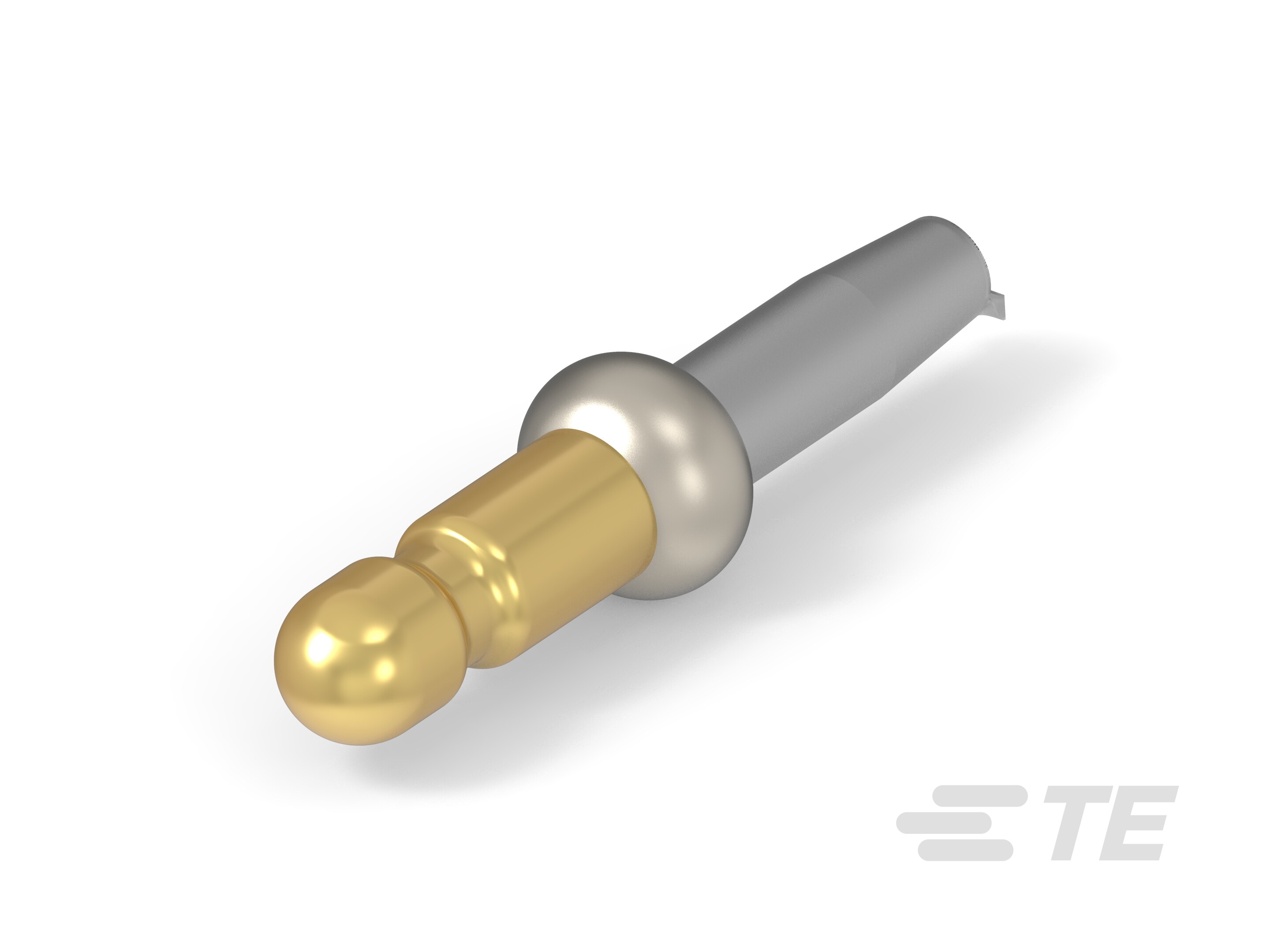

.058 DIA PIN PC AUSN/NI/PHILIPPI
3-61038-1
ActiveTE Connectivity AMP Connectors
.058 DIA PIN PC AUSN/NI/PHILIPPI
Description
General part information
3-61038-1
Receptacle, 1.17 – 1.27 mm [.046 – .05 in] PCB Hole, Through Hole - Press-Fit, Gold Plating, Package, PCB Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-61038-1 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Insulation | Non-Insulated |
| Length - Overall | 0.39 in |
| Mounting Hole Diameter (Max) | 0.094 in |
| Mounting Hole Diameter (Min) | 0.046 in |
| Mounting Type | Through Hole |
| Pin Size - Below Flange Diameter | 0.058 in |
| Terminal Style | Flanged |
| Terminal Type | Single Post |
| Termination | Press-Fit |
