GV2ME16
ActiveCIRCUIT BREAKER, MOTOR PROTECTION, THERMAL MAGNETIC, THREE PHASE, 10 HP, 14 A, 120 TO 600VAC
GV2ME16
ActiveCIRCUIT BREAKER, MOTOR PROTECTION, THERMAL MAGNETIC, THREE PHASE, 10 HP, 14 A, 120 TO 600VAC
Description
General part information

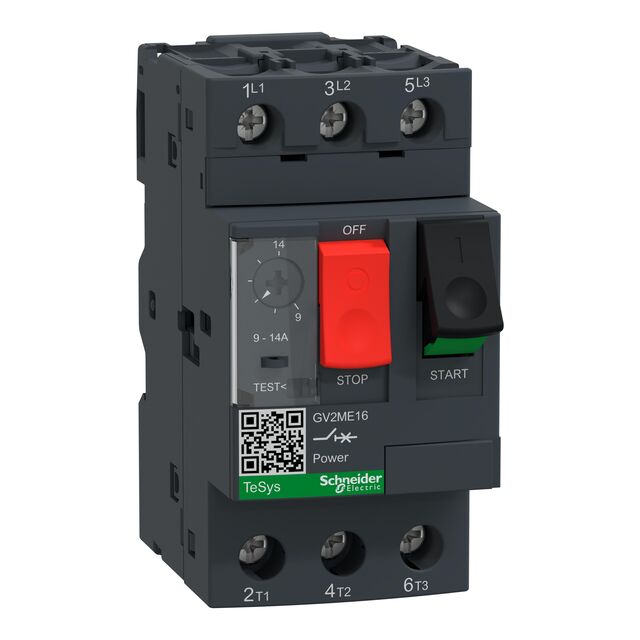

GV2ME16
The GV2ME16 is an enclosed Motor Circuit Breaker with thermal-magnetic trip unit technology. It is DIN rail mountable with vertical and horizontal mounting positions. The addition of an under-voltage trip enables the motor circuit-breaker to be tripped if voltage is lost. The addition of a shunt trip enables remote control of tripping. The control for the enclosed motor circuit-breaker can be locked in the "N/C" position using 3 padlocks.
Technical Specifications
Parameters and characteristics for this part
| Specification | GV2ME16 |
|---|---|
| Actuator Type | Pushbutton |
| Approval Agency | EN 60947-2, EN 60947-4-1, IEC 60947-4-1, IEC 60947-2 |
| Breaker Type | Thermal Magnetic |
| Current Rating | 14 A |
| Illumination | None |
| Mounting Type | DIN Rail |
| Number of Poles | 3 |
| Voltage Rating - AC | 690 V |
| Voltage Rating - DC | 690 V |
